Zone Controller WI-FI Zoning System
HBX Control Systems launches the latest generation of the Wi-Fi Zoning System: the ZON-0600. This revolutionary control allows you to customize exactly your needs and wants for any application including radiant floor and forced air system control or a combination of both. The ZON 0600 can operate zone valves or zone pumps the choice is yours. Each module allows control up to 4 individual zones with the ability of wireless expansion between modules.

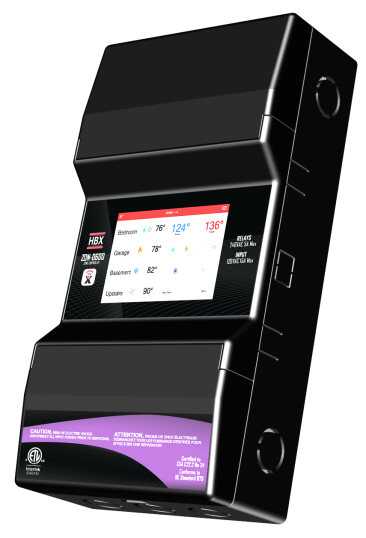

Unlike your typical zone control the ZON-0600 features a full colour touch screen display that allows you to view multi-zone operation status and zone temperatures. The control features a bigger enclosure (double in size) than its predecessor (ZON-0550) for increased space for equipment wiring. The enclosure also features a brand new black glossy colour that will update and modernize any mechanical room. Each controller is now Wi-Fi enabled eliminating the need to use the Thermolinx Wi-Fi module for online connection. Each zone can be viewed or configured from your smartphone or tablet devices, allowing you to control your comfort anytime or anywhere.
With so many features integrated into the ZON-0600 the control allows for customized options including selectable pump and demand outputs, pre and post purge run times with exercising options, and the ability to tie in an auxiliary thermistor to run a setpoint directly off the ZON-0600 (ex. DHW setpoint without using the zone output).
The new design incorporates a new pairing process that utilizes an internal Wi-Fi protocol between modules that further extends the communication distance and reduces the chance of interference with other operating systems. This process also allows for communication for demands, dampers and their priorities, amongst one another.
The zone controller provides outputs (R-W-Y-G-X) for air delivery systems to control fancoils, furnaces, air conditioning units, and humidifiers. The air delivery options include damper control (NC/NO) with fan control. Forced air control can also be utilized for 2nd stage heating or cooling with radiant heating.
Control your thermostat from anywhere in the world with the HBX Zone App.
You can adjust temperatures, schedules, and demands from your phone or tablet device. The HBX Zone App can also keep an eye on your system when you're not at home with the alarm alert feature.
Features & Benefits
- Control up to 4 individual zones per module
- Pump, valve, and damper control
- Multiple heating and cooling modes
- Humidity control
- Fan control (on/off/intermittent)
- Zone priority
- Programmable schedules
- 2 Wire thermostat (THM-0600)
- Wi-Fi Enabled (TMX-0100 is no longer required)
- Remote Software updates via the web
- View zone temperatures and operation status on the main screen
- Bigger wiring enclosure for easy installation
- Full colour touch screen display on the ZON-0600
- Share demand communication between modules wireless
- Selectable pump output options
- Programmable post purge and exercising options
- 3 selectable demand outputs (HT, LT, HD, HD2, CD, CD2, AUX, APP)
- Pairing process is done through zone control
- External thermistor input to run a setpoint directly from the control
- Ability to control more than four dampers with multiple controls
- Warm weather shut down feature to prevent heating equipment to turn on in warm temperatures
- New THM-0600 interface (scroll feature)
Elegant Touch Screen
Wi-Fi Thermostats
– THM-0600

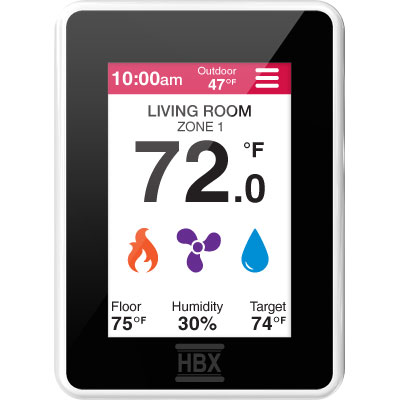

The THM-0600 is a 4 stage full programmable P.I.D thermostat designed for Hydronic and forced air HVAC applications. The large, full graphic display with a low profile is easy to read and simple to navigate using the touch screen control. The thermostat features a low power idle mode with a dim screen when not in use. When connected to the internet with the Wi-Fi Zoning system, the Thermolinx™ mobile app allows you to control the thermostat remotely anytime, anywhere.
The THM-0600 is designed to work only with the HBX Wi-Fi Zoning System and utilizes only two wires (power and communication) to the ZON-0600 zone control. This eliminates the need to pull wire which makes it ideal for retrofits as well as new installations.
Features & Benefits
- Mobile app for Android and Apple devices (ThermoLinx App)
- 2 Wire thermostat
- Temperature sensing modes: Air, Floor and Dual Mode
- Includes 10' floor sensor for radiant floor heating
- Multiple heating and cooling modes with fan control
- Auto heat/cool changeover
- Away mode for energy savings
- Automatic humidity control
- Outdoor temperature display by internet
- Programmable schedules for heating and cooling
- DHW capabilities (digital Aquastat)
Features & Benefits
- Mobile app for Android and Apple devices (ThermoLinx App)
- 2 Wire thermostat
- Temperature sensing modes: Air, Floor and Dual Mode
- Includes 10' floor sensor for radiant floor heating
- Multiple heating and cooling modes with fan control
- Auto heat/cool changeover
- Away mode for energy savings
- Automatic humidity control
- Outdoor temperature display by internet
- Programmable schedules for heating and cooling
- DHW capabilities (digital Aquastat)
