Hydronic heating systems use water to transfer heat throughout a building. They can provide consistent indoor temperatures through radiant floors, radiators, baseboards, or hydronic air handlers. Understanding the different types helps homeowners see how each system works and which components are compatible.

Hydronic heating is not a single type of equipment. It combines a heat source that warms the water with a distribution system that delivers the heat to different rooms. These components work together to provide indoor comfort, and their performance depends on the building, climate, and system design.

If you are here to learn how these hydronic heating systems work, you are in the right place. In this article, I will explain seven common types of hydronic heating systems, how they work, and the main advantages you will get from using them. Let’s not waste any more time and get to the main point.

What Is a Hydronic Heating System?

A hydronic heating system uses heated water, or a suitable water-and-antifreeze mixture, to transfer heat throughout a building. A heat source warms the water, a circulator pump moves it through a network of pipes, and heat emitters release the warmth into the living space. The cooled water then returns to the heat source to be reheated.

Because water transfers heat effectively, hydronic systems can provide steady indoor temperatures without relying entirely on forced-air distribution. Depending on the equipment and system design, the same piping network may also distribute chilled water for cooling.

Most hydronic heating systems include these components:

• Heat source: A boiler, air-to-water heat pump, or another compatible unit that heats the water.
• Circulator pump: Moves water through the piping network.
• Piping: Carries heated water to the distribution components and returns cooled water to the heat source.
• Manifold and controls: Distribute water among multiple circuits and regulate temperatures in different zones.
• Heat emitters: Radiant floor tubing, radiators, baseboards, or hydronic air handlers that release heat.
  Expansion tank and air elimination: Help manage pressure changes and remove unwanted air from the system.

Some hydronic components generate heat, while others distribute it. Understanding this distinction makes it easier to compare the different system types.

Common Types of Hydronic Heating Systems

Check out the seven types of hydronic heating systems below that include both heat sources and heat distribution methods. They serve different purposes, so don’t consider them as interchangeable equipment.

Boilers

A boiler heats water using a fuel source such as natural gas, propane, or oil. A circulator pump moves the heated water through radiators, baseboards, radiant floor tubing, or other compatible emitters.

Modern condensing boilers can recover additional heat from exhaust gases, improving fuel efficiency under suitable operating conditions. Their performance depends on factors such as the boiler model, water temperature, installation, and maintenance.

Boilers are commonly used in colder climates because they can supply the water temperatures required by many traditional radiator systems. However, fuel consumption, operating costs, and emissions depend on the fuel type and system efficiency.

Combi-Boilers

A combination boiler, commonly called a combi-boiler, provides space heating and domestic hot water in one appliance. It heats water for the heating circuit and can also produce hot water for showers, faucets, and other household uses on demand.

Because a separate domestic hot water storage tank may not be necessary, combi-boilers can be useful in homes where installation space is limited.

Their capacity must match household demand. When several hot-water outlets operate simultaneously, the unit may struggle to supply enough hot water while meeting the required flow rate. Proper sizing is therefore important.

Hydro-Furnaces

A hydro-furnace combines water-based heat generation with forced-air distribution. It heats water in a heat exchanger, then circulates that water through a water-to-air coil. A blower moves indoor air across the coil and distributes the warmed air through ductwork.

Unlike a conventional furnace that transfers heat directly from combustion to air, a hydro-furnace uses water as an intermediate heat-transfer medium.

Some systems can be integrated with a compatible heat pump or another heat source. This arrangement depends on the equipment, controls, and system design. Hydro-furnaces are generally most relevant to homes that already use ducted heating.

Hydronic Heat Pumps (Air-to-Water)

A hydronic heat pump, also known as an air-to-water heat pump, extracts heat from outdoor air and transfers it to water circulating through a hydronic system. Instead of generating heat through fuel combustion, it uses a refrigeration cycle involving a compressor, refrigerant, and heat exchanger.

The heated water can then supply compatible radiant floors, fan coils, low-temperature radiators, or other hydronic distribution components. Some system configurations can also provide domestic hot water or cooling.

Heat pump efficiency depends on outdoor temperatures, required water temperature, equipment performance, and system design. Lower water temperatures generally help air-to-water heat pumps operate more efficiently, which is one reason they are commonly paired with radiant floor heating.

Cold-climate models are designed to operate in low outdoor temperatures, but their heating capacity and efficiency vary by model and operating conditions. In some buildings, supplemental heating may be needed during periods of very high demand or extreme cold.

The suitability of an air-to-water heat pump depends on the building’s heat loss, existing distribution system, required water temperature, and local climate.

Hydronic Air Handlers

A hydronic air handler transfers heat from circulating water to indoor air. Water flows through a coil inside the unit while a fan moves air across the coil and distributes it through ductwork. The water may be heated by a boiler or a compatible air-to-water heat pump. When the system supports chilled-water operation, the same air handler can also provide cooling.

Hydronic air handlers can be useful in buildings that already have ductwork or where forced-air distribution is preferred. Models designed for lower water temperatures may also be suitable for heat pump applications. Their performance depends on the coil design, airflow, water temperature, and compatibility with the heat source.

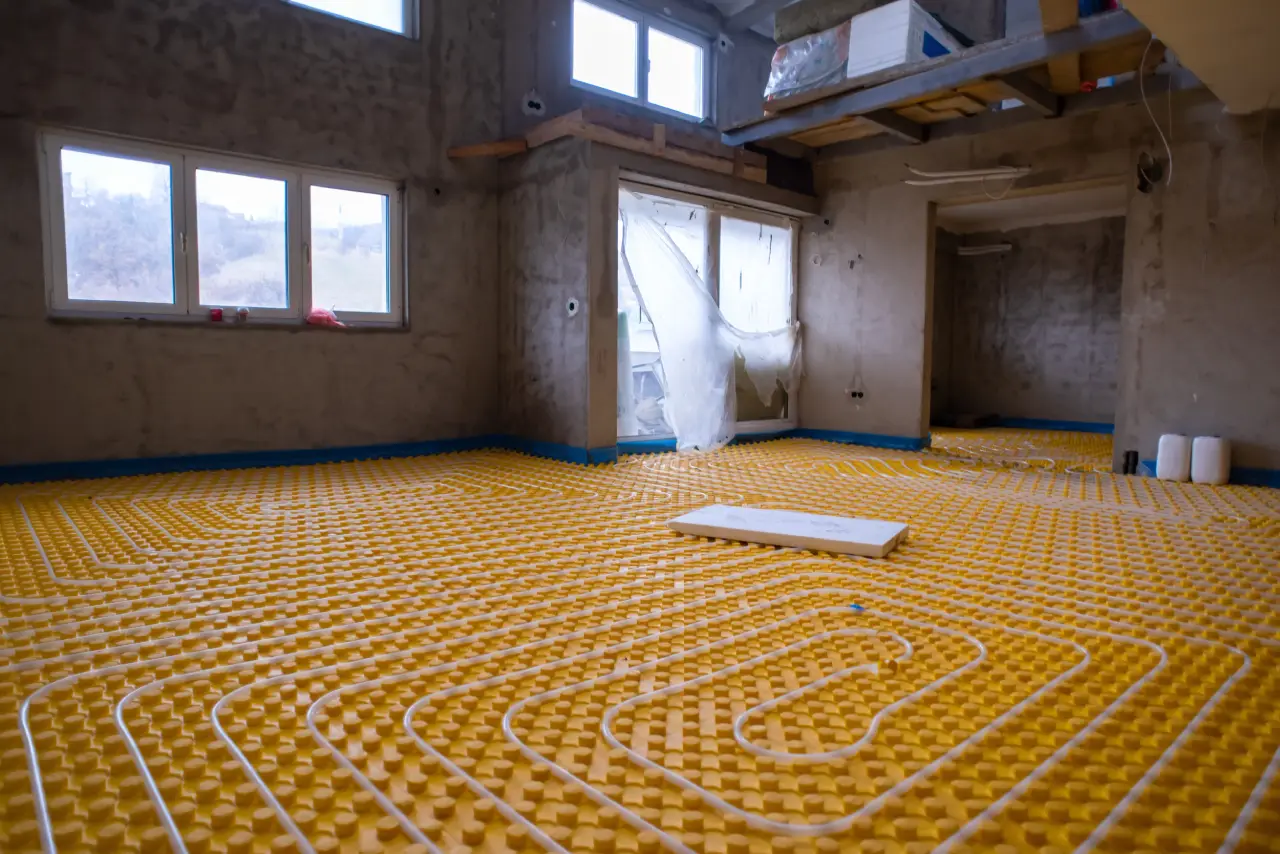

Hydronic Radiant Floor Heating

Hydronic radiant floor heating circulates warm water through tubing installed within or beneath a floor. The floor surface releases heat into the room, creating a relatively even temperature distribution.

There are two common installation approaches:

• Wet installation: Tubing is embedded in a concrete slab or another suitable floor assembly.
• Dry installation: Tubing is installed in panels or channels above or below the subfloor.

Radiant floor systems can operate with relatively low water temperatures when the floor construction, tubing layout, and heating load are properly designed. This makes them compatible with many air-to-water heat pumps and condensing boilers.

The system’s performance depends on insulation, floor coverings, tubing spacing, water temperature, and the building’s heat loss. Installation can be more involved in existing homes, particularly when the floor assembly needs significant modification.

Hydronic Baseboards and Radiators

Hydronic baseboards and radiators release heat from hot water circulating through metal pipes, panels, or finned elements. They transfer warmth through a combination of radiation and natural convection.

Traditional radiators and baseboards are commonly connected to boilers because many older systems operate at relatively high water temperatures. However, some modern radiators are designed to provide sufficient heat at lower temperatures.

When connecting radiators or baseboards to an air-to-water heat pump, the existing emitters must be evaluated for their heat output at the intended water temperature. Larger radiators or other modifications may be necessary in some homes.

These systems can provide room-by-room temperature control when paired with suitable valves, thermostats, and zone controls.

How Do Hydronic Heating Systems Work?

Hydronic heating systems follow a basic circulation cycle, although the details vary depending on the heat source and distribution equipment.

First, a boiler, heat pump, or another compatible heat source raises the water temperature. A circulator pump then moves the water through the piping network toward the heat emitters.

As the water passes through radiant floor tubing, radiators, baseboards, or an air-handler coil, it releases heat into the rooms. The cooler water returns to the heat source, where it is reheated before circulating through the system again.

Controls help regulate this process. Thermostats signal whenheating is required, while zone valves or separate circulator pumps control water flow to different areas of the building.

Other components also play important roles. Manifolds distribute water among multiple circuits, expansion tanks accommodate pressure changes, and air separators help remove unwanted air from the piping.

System efficiency depends on several factors, including heat-source performance, water temperature, circulation, insulation, and the heat output of the emitters. Matching the heat source to the distribution system is particularly important when designing a hydronic system around a heat pump.

Benefits of Hydronic Heating Systems

Hydronic heating can provide several advantages when the equipment and distribution components are properly selected and installed.

• Consistent indoor comfort. Radiant floors and appropriately sized radiators can provide relatively even temperatures throughout a room.
• Potential energy savings. Efficient heat sources and well-designed distribution systems can reduce energy consumption. Actual savings depend on the building and operating conditions.
• Quiet operation. Radiant floors and radiator-based systems generally operate without the continuous airflow noise associated with forced-air heating.
• Reduced air movement. Water-based distribution does not require air to be blown through the house to deliver heat. However, it does not eliminate dust or allergens from the indoor environment.
• Zone control. Separate thermostats and zone valves can regulate temperatures in different rooms or areas.
  Flexible system configurations. A hydronic network can support different types of emitters, provided the components are compatible.
• Compatibility with electrification. An appropriately designed hydronic system can use an air-to-water heat pump instead of a combustion-based heat source.

The benefits vary by heat pump sizing, system type, installation quality, climate, and maintenance. A hydronic system is not automatically more efficient than every alternative; the complete system must be evaluated.

To Wrap Up

Hydronic heating systems use water to transfer heat from a heat source to different areas of a building. Boilers, combi-boilers, hydro-furnaces, and air-to-water heat pumps provide different ways to generate heat, while radiant floors, air handlers, baseboards, and radiators distribute it.

The most suitable configuration depends on the building’s heating requirements, existing equipment, climate, and desired indoor comfort. Understanding the differences between heat sources and distribution methods makes it easier to evaluate system compatibility and efficiency.

For homeowners exploring these 7 types of hydronic heating systems and water-based heating, the first step is to understand how the existing or planned distribution system works and what water temperatures it requires.
