Our Hydronic Heating Load Design Service is included with the purchase of any of our Arctic Heat Pump Systems. While we have a small upfront design charge, this will be credited back to your project should you proceed to work with us.

Hydronic Design Services

Heat & Cooling Load Calculation Service

Often referred to as a Manual J, a proper design of any HVAC project requires knowing the heating load or cooling load. The heating load is the number of BTUs required in the coldest day of the year in your region to keep the house at its design set point temperature.

Our calculation service ensures that the equipment for your project is sized correctly – and is based on many factors. An improperly sized system could mean a house that can’t keep warm in a cold winter, or an oversized system that leads to higher upfront and operating costs than required.

Getting this right is important!

Manual J Design Service

Manual J
Design Service

We provide this service FREE of charge to all customers that purchase a packaged heat pump system from us. (note there is a small upfront fee, but this is credited back to you on your purchase invoice).

To determine the size of equipment your project needs. We use the industry standard Manual J Calculation software to determine the heating and cooling load – which is where all building projects should start!

Factors this design considers:

  • Geographic location
  • Building design and size
  • Construction materials used

Without a Heating/Cooling design load it is very difficult to accurately size any heating system including gas, electric or heat pump. With this, you will then be able to size any heating cooling equipment from any manufacture.

GETTING STARTED

The process involves you uploading your building plans and reviewing them with our certified Heat Load Designer, who then provides you with a design analysis.

$0.10 per Square Foot
BUY NOW

Radiant Floor
Design Service

Using state of the art CAD design software we can design & optimize the loop layout design and material needs, so that you will be ensured there are not cold spots, and your radiant floor system will operate as efficiently as possible to cover the heating & cooling demands, and ensuring optimal energy savings and comfort with our radiant floor design.

Included in the design service is also pump sizing, loop lengths, and manifold zoning – and with this report, you can ensure your radiant floor heating system will be professionally designed!

$0.18 per Square Foot

NOTE: This service includes a Manual J Heating Load Design Service to accurately design the radiant floor system.

LEARN MORE ABOUT RADIANT FLOOR HEATING DESIGN
BUY NOW
Radiant Floor Design to suit your build
+Radiant Floor Design
+Radiant Floor Design
+Sample Form Heating Design Load Report
+Radiant Floor Design

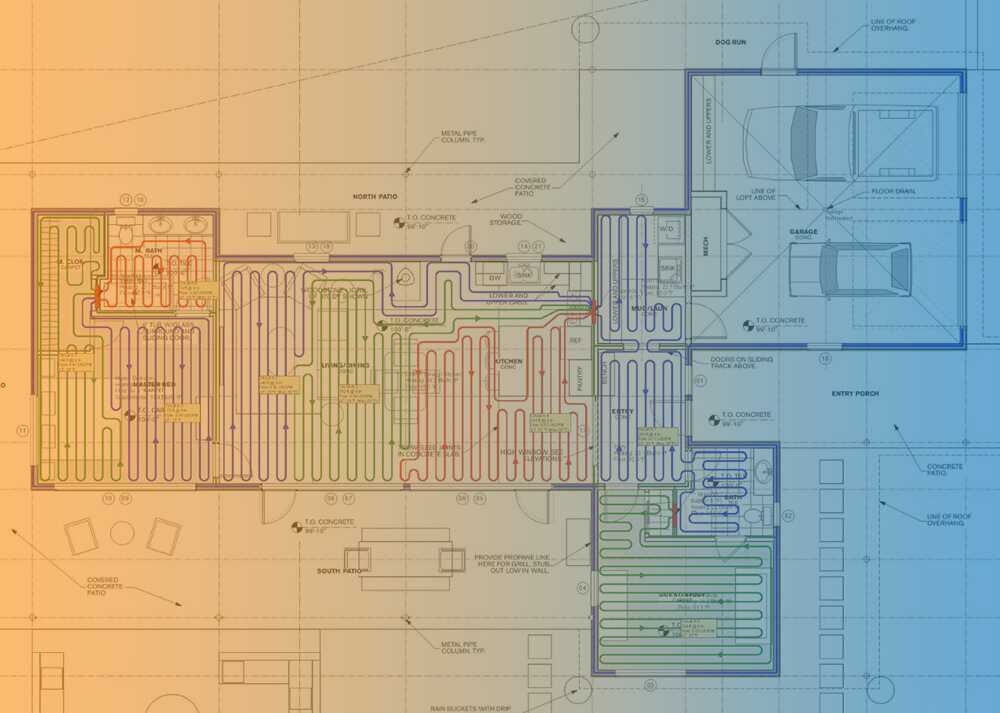

+Loop CAD sample page from Radiant Loop Report Package

Zoning

With our Radiant Floor Design Service we will work with you directly to create multiple zones so that you can easily adjust the temperature in one area with effecting another area.

Full Equipment Design

Our software will calculate the minimum required pump speeds required for each loop to optimize the supply and return water temperatures for comfort. We will give you the recommended pump sizes and can supply you with a complete radiant floor package system from the pumps, manifolds, actuators and zone controllers including WiFi Zone touch screen thermostats.

Heating
or cooling

Should you also wish to also cool your floors we can incorporate full radiant floor cooling to the system design.

How your radiant floor design project works

Our Loop CAD radiant floor design starts by first understanding the heating design load of the house/building. This is needed so that the radiant floor loops will be able to meet the heating loss that occurs during the coldest days.

In order to do this, we will require you to upload your building plans. Our design engineers will then contact you to review the plans and then first work on calculating a heating/cooling load using a Manual J calculation methodology.

Once this is complete, this information is fed into the Loop design software to help our designers with the layout the PEX loops, ensuring they match the calculated heating load.

We will work with you to discuss any zoning requirement you may have in the design process. In the end you will have a complete material list of required parts as well as a map of the PEX piping layout.

$.18 per Square Foot

Includes Both Heat Load Calc + Loop Design

BUY LOOP DESIGN SERVICE NOW

Frequently Asked Questions

What is a Manual J Heat and Cooling Load Calculation?

A Manual J calculation is an industry-standard assessment used to determine the exact number of BTUs required to heat or cool your building on the most extreme weather days of the year.

Why do I need a heat load design service for my home?

Without a proper heat load design, it is very difficult to accurately size your heating system. An improperly sized system can lead to a house that won't stay warm during a cold winter, or an oversized system that forces you to pay higher upfront equipment and daily operating costs.

How much does the Manual J design service cost?

Our standalone Manual J heat load calculation service costs $0.10 per square foot of your building.

Can I get the heat load design service for free?

Yes! We provide this service completely free of charge to any customer who purchases a packaged heat pump system from us. You will pay a small upfront fee to start the design, which is then fully credited back to you on your final equipment purchase invoice.

What factors do you consider when calculating my home's heating load?

To ensure absolute accuracy, our certified designers evaluate your specific geographic location, your exact building design and size, and the specific construction materials and insulation used in your project.

How do I get started with the heat load calculation process?

Getting started is simple. You just need to upload your architectural building plans. Once uploaded, you will review the plans directly with one of our certified Heat Load Designers so they can begin your custom design analysis.

What is the difference between the Manual J service and the Radiant Floor Design service?

The Manual J service ($0.10 per sq. ft.) calculates your overall heating and cooling needs so you can properly size your heat pump. The Radiant Floor Design service ($0.18 per sq. ft.) includes the Manual J calculation plus a complete state-of-the-art Loop CAD layout for your PEX piping, manifold zoning, and pump sizing.

Can I use your heat load calculation for other types of heating systems?

Yes. While we specialize in cold climate heat pumps, an accurate heating and cooling design load allows you to perfectly size any heating and cooling equipment from any manufacturer, including gas or electric systems.
