Hydronic Air-to-Water Heat Pump Controller

The worlds first Hydronic Air-to-Water Heat Pump Controller

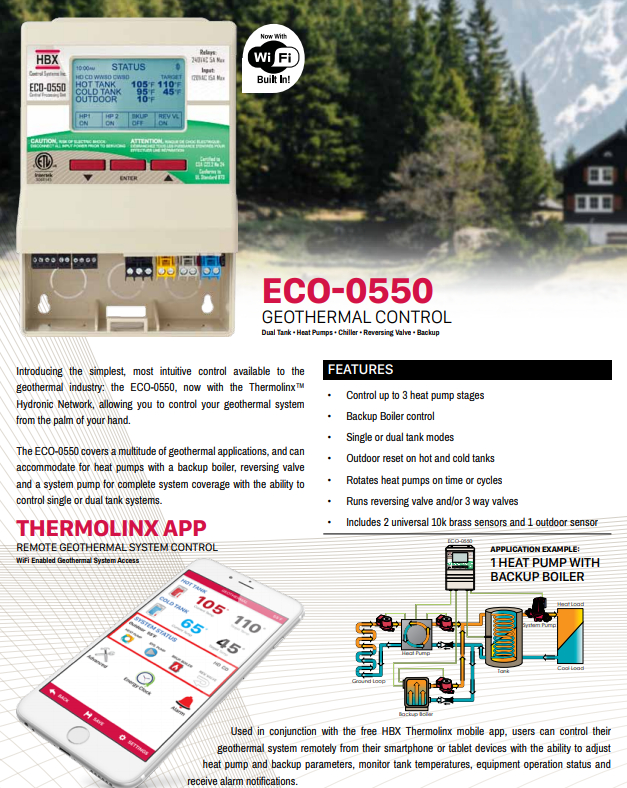

Introducing the simplest, most intuitive control available to the hydronic heat pump industry: the ECO-0550, now with the Thermolinx™ Hydronic Network, allowing you to control your Arctic Heat Pump system from the palm of your hand. The ECO-0550 covers a multitude of heat pump applications and can accommodate multiple heat pumps with a backup boiler, reversing valve for complete system coverage with the ability to control single or dual tank systems.

Adjust priorities from heating to cooling or set heating and cooling outdoor reset curves to maximize the performance of your Arctic Heat Pumps.

For large systems with 2 or 3 heat pumps the ECO controller seamless load balances the heat pumps to ensure equal loads are placed on each heat pump so that no single heat pump is left doing the majority of the work.

Set up Critical email alert notifications and monitor your system in real time.

Features & Benefits

01
Remote access via Apple® or Android™ smartphone or tablet devices
02
Stage up to 3 heat pumps
03
Backup boiler control with 2 heat pump operation
04
Outdoor temperature reset for both HEATING and COOLING.
05
Single or dual tank modes
06
Runs reversing valve and/or 3 way valves
07
Load balances multiple heat pumps by rotating heat pumps based on time or cycles
08
Automatic heat / cool changeover
09
Priority setup for heating or cooling
10
Warm & cold weather shutdown with lag time setup for shoulder seasons
11

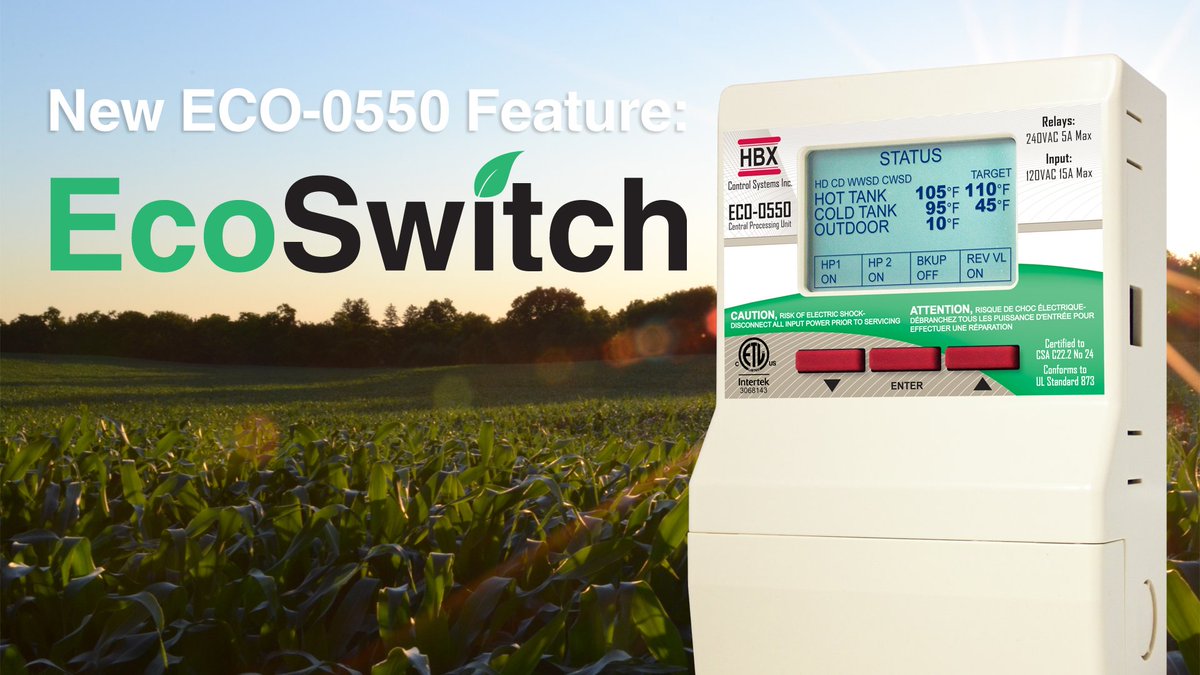

EcoSwitch – Lockout heat pumps and run backup boiler only
12
Pump Exercising
13
Limited 2 year warranty

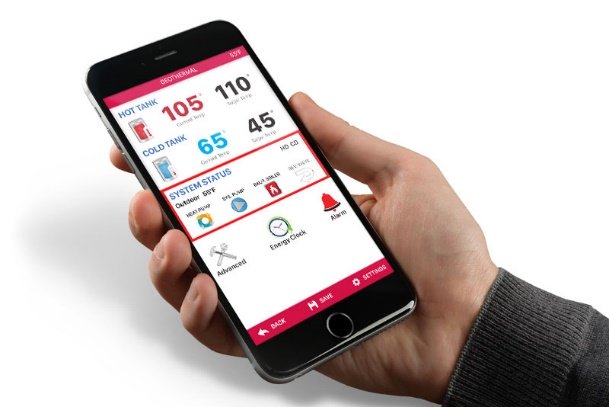

Thermolinx

With built in Thermolinx you can now access your heating system on any smart phone or tablet.   Make changes on the go, adjust priorities, set alerts, and create schedules.   The ECO 0550 is the only heat pump controller that is built for hydronic heat pumps!  Connecting and setting up your ECO controller is fast and easy; all you need is a WiFi Router.

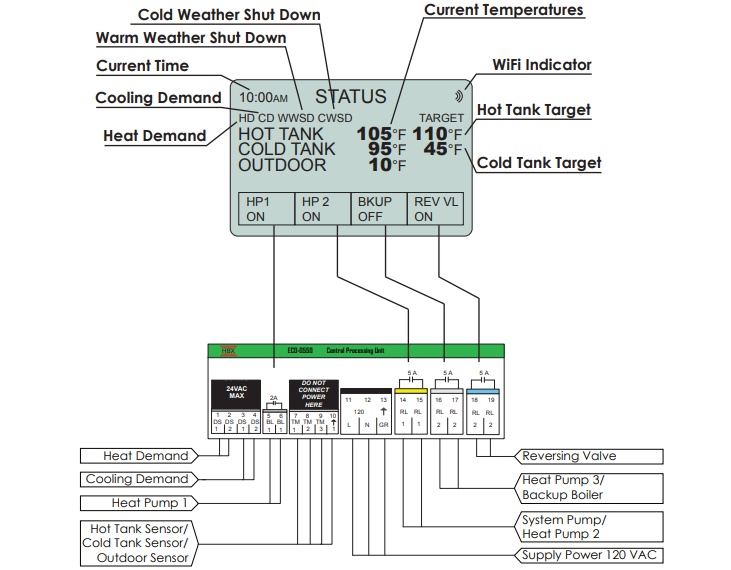

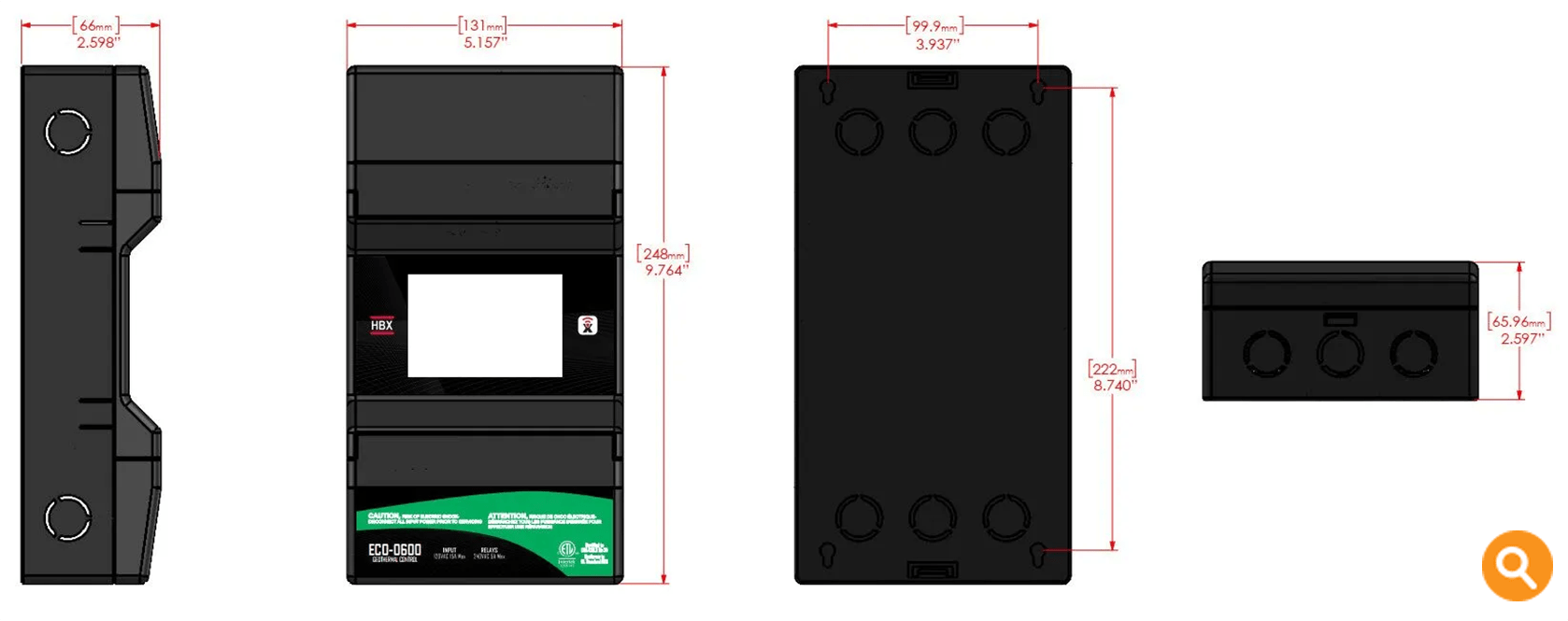

Technical Data and Dimensions

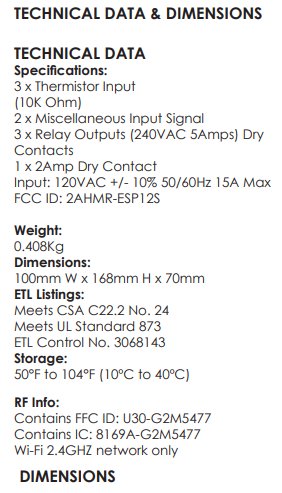

Technical Data
ECO-0550 Geothermal Control
