One of the best uses for your Arctic Heat pump - hydronic heating. With our efficient system, it will help you save on both your heating/cooling bills, and your energy output.

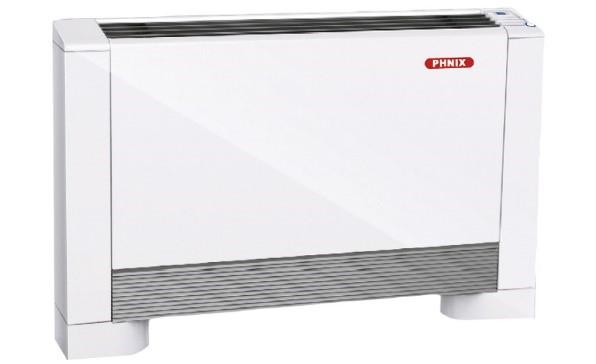

Ultra-Efficient Hydronic Fan Coils use a brushless DC motor to quietly transfer the circulating hot or cold water energy to the air in the room. Built in 3-way valve opens and closes as needed. Includes remote control to adjust the climate. These Hydronic Fan Coils can be mounted on the wall, floor or ceiling. Available in 5 sizes to cover any size room.
Arctic High Wall Fan Coils are great for individual room zoned heating. They are specifically designed to be mounted closer to the ceiling for optimal performance for cooling. Given hot air rises and cool air sinks, the high wall fan coil is a great compliment for radiant floor heating where you also want to use the heat pumps system for cooling in the summer. Easy to install with built in WiFi and wireless controllers these units are only 4.75” thick making them both stylish and functional.

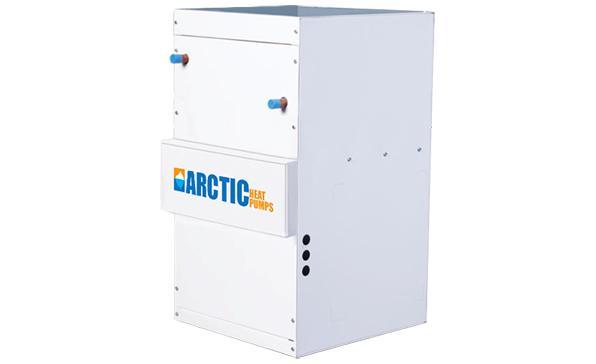

Arctic Air Handlers use a Variable Speed Motor that allows it to precisely deliver the required air flow thought the house. With the variable speed drive the motor will automatically adjust the speed to accommodate closed zones or dirty filters. The extra-large internal heat exchangers are designed for low level heat sources such as Air Source Heat Pumps and Geothermal. Can be configured to supply heating or cooling or both. Easily replaces any existing central furnace.

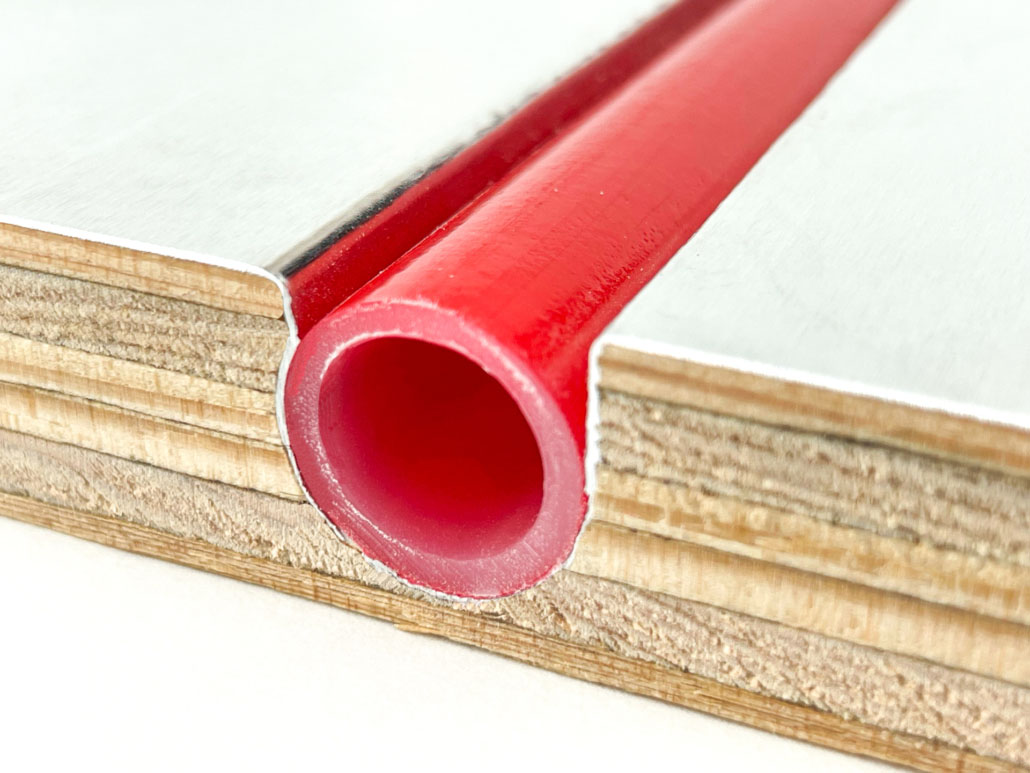

Radiant floor panels are an energy-efficient solution for home heating and cooling, using integrated PEX channels to circulate water beneath the floor for even, consistent comfort. When paired with an Arctic Heat Pump, these systems operate at very low supply temperatures, maximizing efficiency while reducing energy costs. Radiant panels are ideal for zoning, allowing precise temperature control in different areas of the home without drafts or noise. Our EcoWarm Radiant Board is designed for this category, offering high performance, easy installation, and seamless integration into complete hydronic systems for quiet, comfortable, and efficient living.

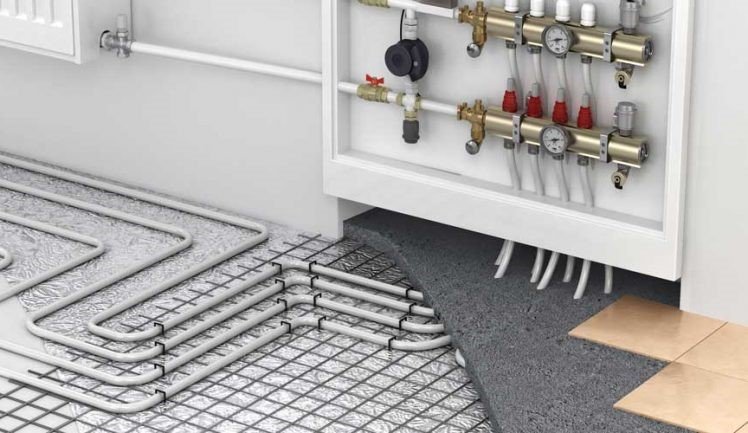

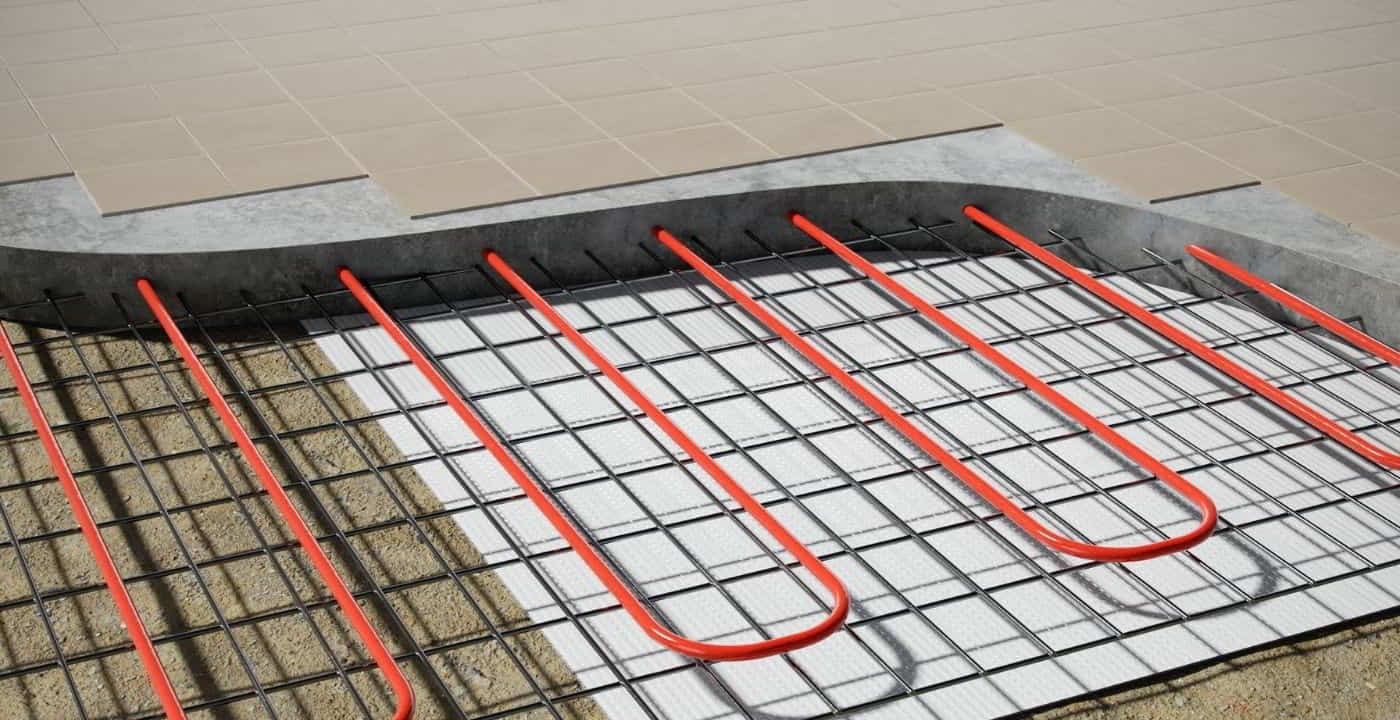

Radiant Floor Heating is a perfect match for our Arctic Heat Pumps and provides some of the biggest savings! Radiant floor is a low temperature heat that warms the body from the floor up. No cold drafts or dust. It is very easy to install or retrofit any existing system. If you don’t have radiant floor heating, we can help you with design service at NO CHARGE. Yes, it is also possible to use our hydronic heat pump to do radiant floor cooling in the summer time!
Ultra-Efficient Hydronic Fan Coils use a brushless DC motor to quietly transfer the circulating hot or cold water energy to the air in the room.
Arctic High Wall Fan Coils are great for individual room zoned heating. They are specifically designed to be mounted closer to the ceiling for optimal performance for cooling.
Arctic Air Handlers use a Variable Speed Motor that allows it to precisely deliver the required air flow through the house.
Radiant Floor Heating is a perfect match for our Arctic Heat Pumps and provides some of the biggest savings!
| Category | High Wall Fan Coil | Low Wall / Floor Fan Coil | Hydronic Air Handler (Ducted / High Velocity) | Radiant Floor Panels (Low Mass – EcoWarm) | Radiant Concrete (High Mass Slab) |
|---|---|---|---|---|---|
| Primary Strength | Cooling + dehumidification | Heating comfort | Whole-home distribution | Fast radiant comfort | Thermal storage / stable heating |
| Heating Performance | Good | Excellent | Very good | Excellent | Excellent |
| Cooling Performance | Excellent | Moderate | Excellent | Moderate (assist only) | Limited (very slow response) |
| Latent Heat Removal | Yes | Yes | Yes | No | No |
| Design Water Temp (Heating) | 40–50°C | 35–45°C | 45–55°C | 30–35°C | 30–35°C |
| Design Water Temp (Cooling) | 6–12°C | 6–12°C | 6–12°C | 16–20°C | 16–20°C |
| Response Time | Fast | Fast–moderate | Fast | Fast (low mass) | Very slow (high mass) |
| Comfort Quality | Medium | High | Medium | Very high | Very high |
| Air Movement / Drafts | High | Medium | High | None | None |
| Noise | Medium | Low–medium | Medium–high | Silent | Silent |
| Energy Efficiency | Good | Good | Moderate | Very high | Very high (steady-state) |
| Zoning Capability | Excellent (room-by-room) | Excellent | Limited (≈2–4 zones max) | Excellent (loop zoning) | Good (but slow response limits control) |
| Control / Adjustability | Precise, fast | Precise | Moderate | Very responsive radiant | Poor (lagging system) |
| Installation Cost | Medium | Medium | High (ducting) | Medium–high | Medium (if slab already required) |
| Best Application | Cooling-heavy rooms | Heating-dominant spaces | Retrofits / ducted homes | New builds, retrofits, upper floors | Basements, garages, slab-on-grade |
| Cooling Limitation | None | Airflow limited | None | May Need Dehumidification | May Need Dehumidification and secondary cooling source for speed of cooling |
