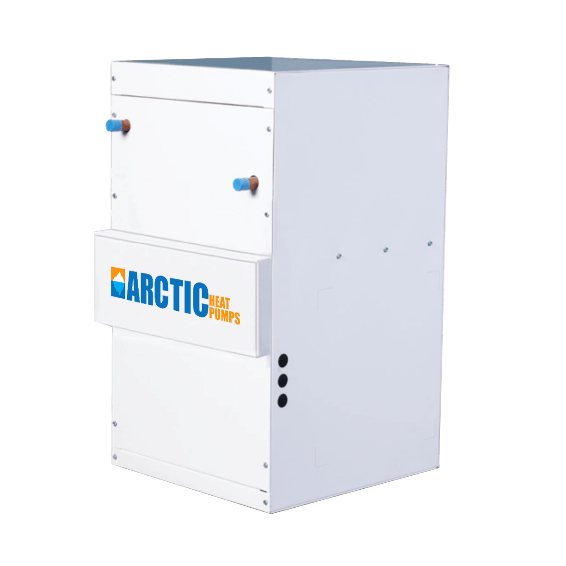

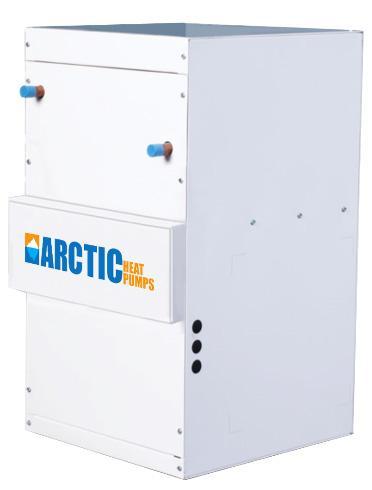

The Arctic Air Handler replaces a centralized forced air heating system. The oversized heat exchanger with 6 rows of copper pipe allows it to produce heat and cooling at a much smaller driving temperature. Ideal for heat pumps and geothermal. Variable Speed fan control allows one size of hydronic air handler to cover a much larger spectrum. The Arctic LV-Z-1750 can produce 3.5 to 5 tons of heating/cooling while the smaller LV-Z1050 can supply 1.5 to 3 tons of heating/cooling. The VFD hydronic air handler has a built in static pressure sensor that allows it to automatically set the optimum fan speed for the given house design. This means sizing the fan to the duct size is virtually eliminated.
|
Air Handler Spec |
LV-Z-1050 |
|
Max Rated CFM@ 1” E.S.P |
1200 |
|
Voltage |
115/230 |
|
Nominal Operating Amperage |
6 Amps |
|
Integral Surge & Fuse System |
Yes |
|
Horse Power/Watts |
1/3 HP – 515 Watts |
|
Motor RPM |
Variable |
|
Supply Air Size |
15” x 16” |
|
Return Size Needed |
182 in2 |
|
Shipping Weight |
95LBS (43 Kg) |
Have questions about our energy-efficient heating solutions? We're here to help! Whether you need product details, installation support, or assistance with an order, our team is ready to assist you.
Get in touch, no matter where you’re at in your project plans. We’d be so happy to help!
Generally, no. Standard gas furnaces have heat exchangers designed for very hot water, usually around 180°F, from a boiler. Heat pumps work best at lower temperatures, typically 110°F to 120°F. If you use a standard furnace coil, the air may feel lukewarm or cool. The Arctic Hydronic Air Handler solves this with a massive 6-row heat exchanger, specifically engineered to deliver warm, comfortable air over 100°F even when using lower-temperature water.
Yes. It replaces both your furnace and your central air conditioner. In the summer, the outdoor heat pump produces chilled water, approximately 45°F. The Arctic Air Handler circulates this water through the coil, removing humidity and blowing cool air through your existing ducts.
Traditional fans are either 100% on or off. The Arctic unit uses a VFD, or Variable Frequency Drive, motor. It creates a cruising mode, running at lower speeds to maintain temperature rather than stopping and starting constantly. This uses a fraction of the electricity, as low as 100 watts, and keeps the room temperature perfectly stable.
No. This is a major advantage of the Arctic system. The smart controller monitors the pressure in your ducts. If you close the vents in one room for zoning, the fan automatically slows down to prevent pressure buildup. This makes zoning simple, quiet, and efficient without complex bypass ductwork.
The unit is designed for cold climates, but for extreme sub-zero events, we offer an optional slide-in electric heater from 5kW to 20kW. This fits directly inside the air handler and acts as an emergency backup, ensuring your home stays warm regardless of outdoor conditions.
It is significantly quieter than a gas furnace. The soft-start motor ramps up slowly, eliminating the loud whoosh sound of air rushing through the vents when a cycle starts.
Yes, they significantly reduce carbon emissions compared to fossil fuel systems.
Yes, Arctic Heat Pumps offer efficient heating in winter and cooling in summer.
Minimal maintenance is required, such as cleaning filters and annual inspections.
Many regions offer rebates and incentives for installing energy-efficient heat pumps.
