Dew Point Switch - RESOL TS10

USD$ 683
SKU: N-433
2 In Stock

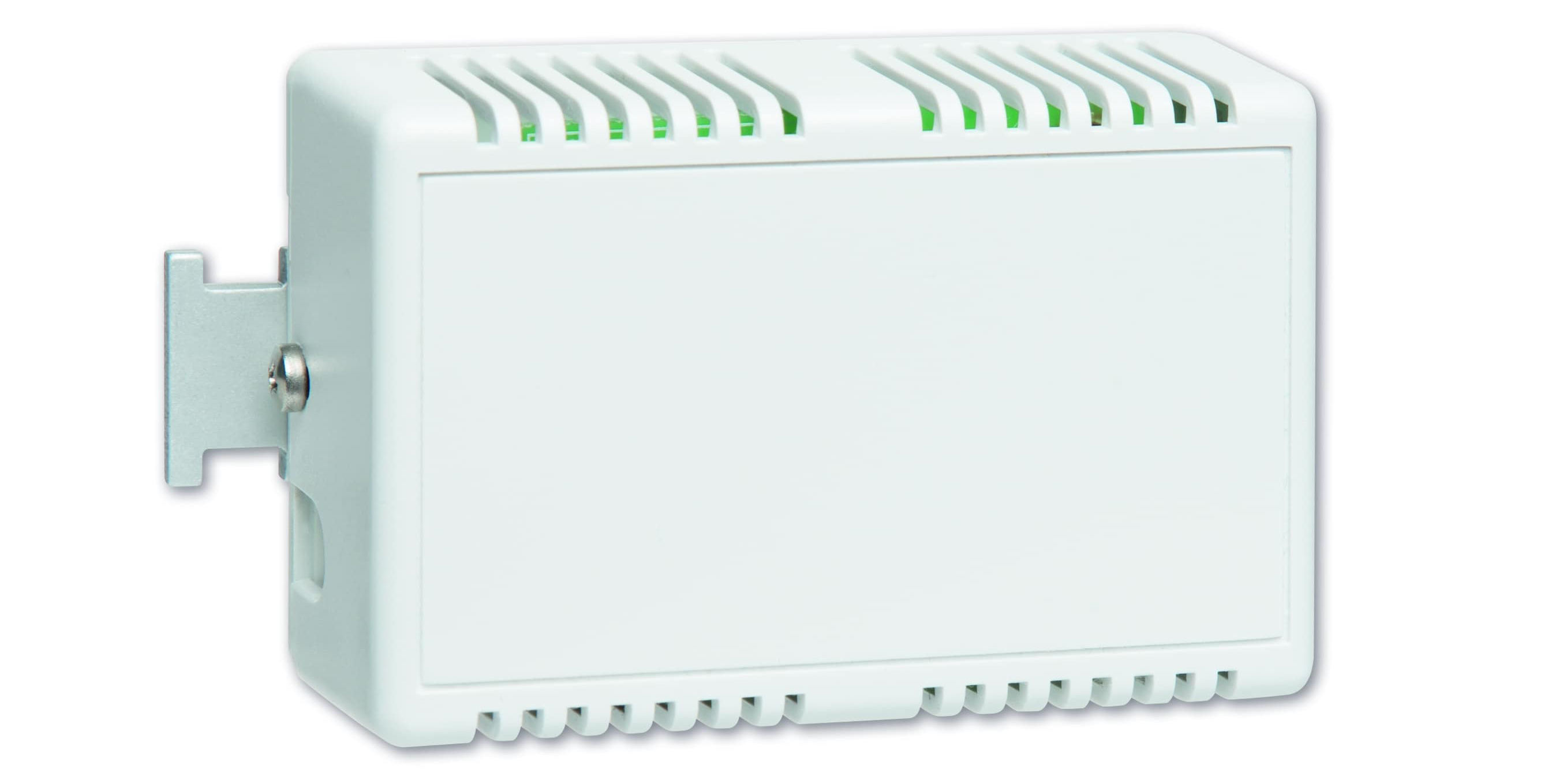

RESOL TS10 - Dew Point Switch

The TS10 Dew point switch is designed for condensation detection in a heating circuit used for cooling purposes. If the relative humidity falls below the adjusted set value, the TS10 will switch a potential-free contact.

RESOL TS10 - Dew Point Switch

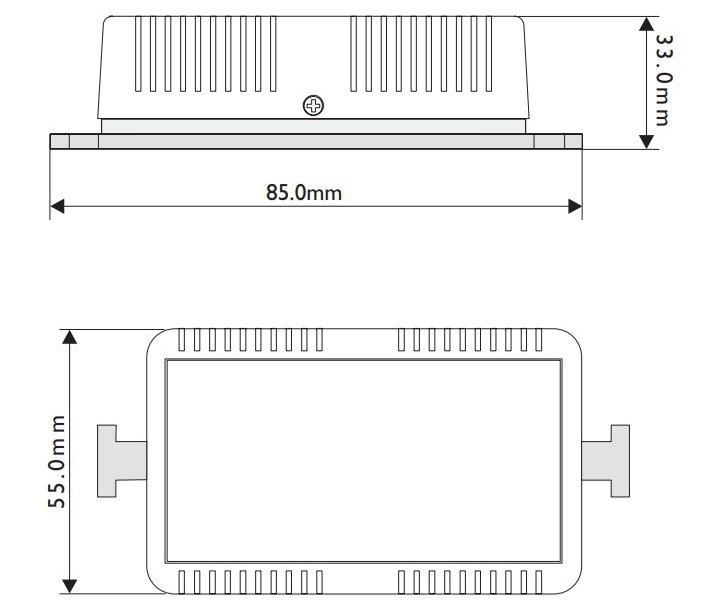

DIMENSIONS

RESOL TS10 - Dimensions

Technical Data

01

Operating capacity:

50 - 95% relative humidity
02

Measuring accuracy:

+/- 3% relative humidity
03

Switching difference:

(microswitch) at 50% relative humidity: approx. 4% relative humidity
04

Switching capacity:

48 VAC maximun; 1 - 100 mA (switches with gold contacts)
05

Working life:

100,000 switching cycles
06

Ambient temperature:

0 - 60°C
07

Temperature coefficient:

-0.2% relative humidity /K at 20°C and 50% relative humidity
08

Half-value time at v=2 m/s:

1.2 min
09

Mounting position:

Any position
10

Measuring element:

hygrostat, water-resistant
11

Dimensions:

85x55x33 mm
12

Weight:

approx. 80 g
