Hydronic Zone Controller - HBX ZON-0600

CAD$ 346.49
SKU: N-459
1 In Stock

Hydronic Zone Controller - HBX ZON-0600

This revolutionary control allows you to customize exactly your needs and wants for any application including radiant floor and forced air system control or a combination of both.

The ZON-0600 can operate zone valves or zone pumps, the choice is yours. Each module allows control up to 4 individual zones with the ability of wireless expansion between modules.

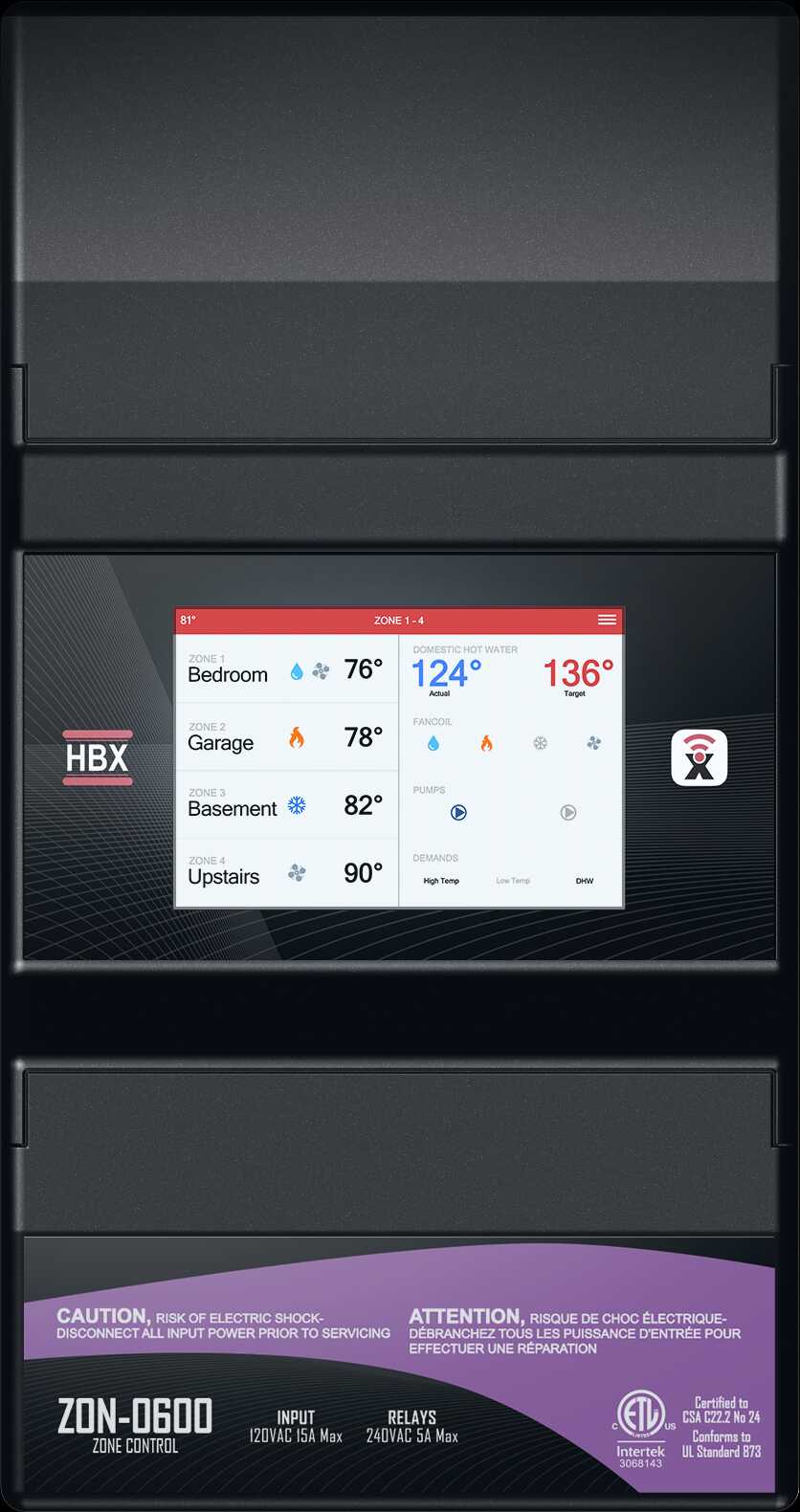

Unlike your typical zone control the ZON-0600 features a full colour touch screen display that allows you to view multi-zone operation status and zone temperatures. The control features a bigger enclosure (double in size) than its predecessor (ZON-0550) for increased space for equipment wiring. The enclosure also features a brand new black glossy colour that will update and modernize any mechanical room.

Each controller is now Wi-Fi enabled eliminating the need to use the Thermolinx Wi-Fi module for online connection. Each zone can be viewed or configured from your smartphone or tablet devices, allowing you to control your comfort anytime or anywhere.

HBX ZON-0600 WiFi Enabled Zone Control
HBX ZON-0600
Zon-0600 Configuration

With so many features integrated into the ZON-0600 the control allows for customized options including selectable pump and demand outputs, pre and post purge run times with exercising options, and the ability to tie in an auxiliary thermistor to run a setpoint directly off the ZON-0600 (ex. DHW setpoint without using the zone output).

The new design incorporates a new pairing process that utilizes an internal Wi-Fi protocol between modules that further extends the communication distance and reduces the chance of interference with other operating systems. This process also allows for communication for demands, dampers and their priorities, amongst one another.

HBX ZON-0600 Specifications

Features & Benefits

01
Control up to 4 individual zones plus 1 setpoint per module
02
Wireless expandability up to 20 zones
03
Pump, valve and damper control
04
Multiple heating and cooling modes
05
Humidity control
06
Fan control (on/off/intermittent)
07
Zone priority
08
Programmable schedules
09
2 Wire thermostat (THM-0600)
10
Wi-Fi Enabled (TMX-0100 is no longer required)
11
Remote Software updates via the web
12
View zone temperatures and operation status on the main screen
13
Bigger wiring enclosure for easy installation
14
Full colour touch screen display on the ZON-0600
15
Share demand communication between modules wireless
16
Selectable pump output options
17
Programmable post purge and exercising options
18
3 selectable demand outputs (HT, LT, HD, HD2, CD,CD2, AUX, APP)
19
Pairing process is done through zone control
20
External thermistor input to run a setpoint directly from the control
21
Ability to control more than four dampers with multiple controls
22
Warm weather shut down feature to prevent heating equipment to turn on in warm temperatures
23
New THM-0600 interface (scroll feature)
24
Limited 2 Year Warranty. Made In Canada

Dimensions

HBX ZON-0600 Dimensions

Visit hbxcontrols.com to view the manual and other documentation.
