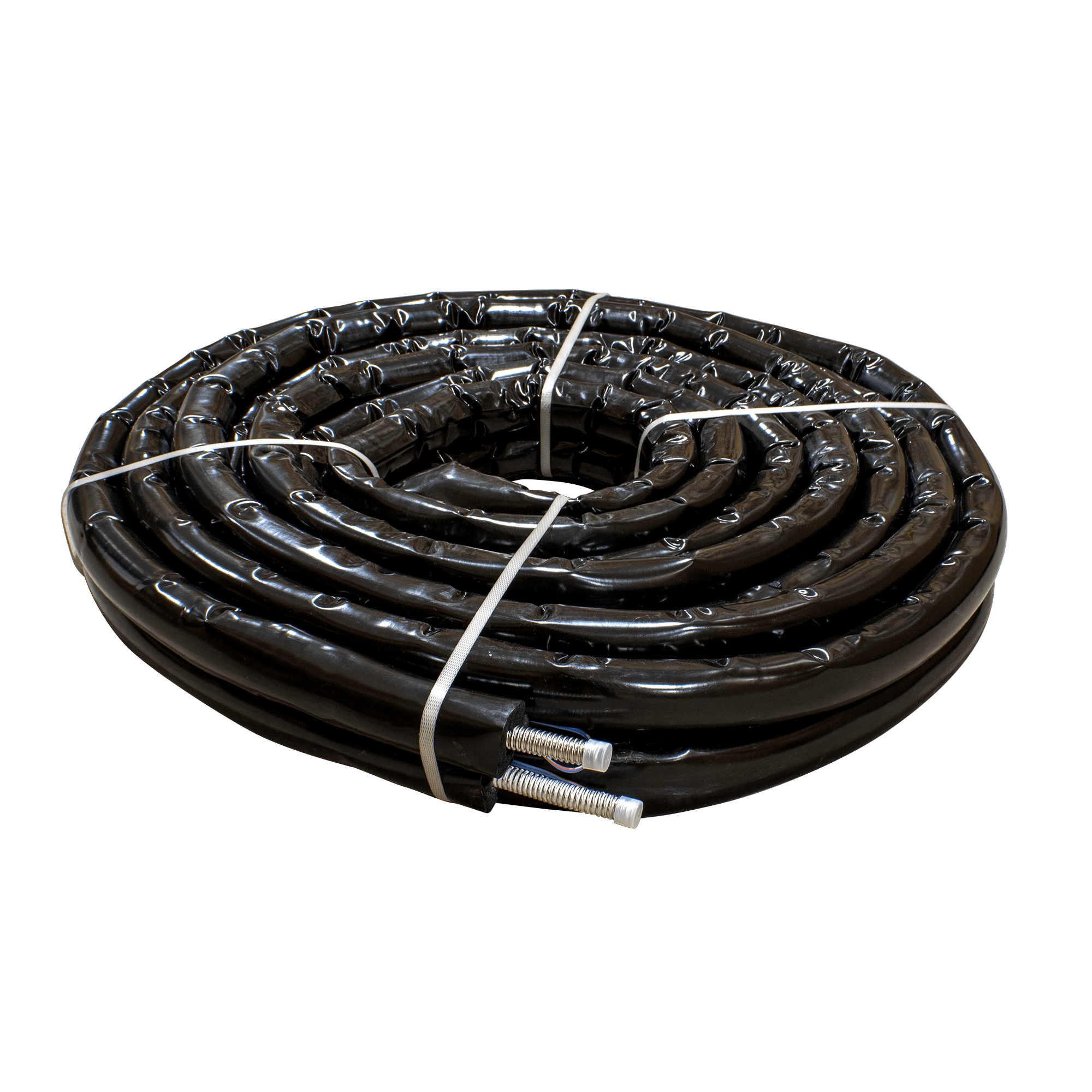

Aurora Flex Solar 1" Stainless Steel Piping -DIN25 with 3/4" EPM insulation
- Model: N-269
- Weight: 30lbs
- StockManufactured by: Aurora Flex
Stainless Steel SUS 304 (1" OD & 3/4" ID) solar piping with high temp 3/4" EPDM insulation and weather proof coating. Includes silicon wire for temperature probe. Guarantees a professional installation in 1/4 the time it would take to do a copper installation. No leaks and no soldering! 50 feet per roll. Each carton contains 2 x 50 ft coils for a total of 100 feet.
Features
No Soldering- Leak FREE
![No Soldering- Leak FREE pipes fits cropped](/images/products/pipes-fits-cropped.jpg)
3/4' 304 Stainless Steel pipes
![3/4' 304 Stainless Steel pipes pipes fits cropped](/images/products/pipe.jpg)
Installation
Step One
![Step One step1](/images/products/step1.gif)
Cut the hose to your desired length with cutter
Step Two
![Step Two step2](/images/products/step2.gif)
Put a fitting onto the solar hose, put one end into flange tool NOTE: Flange tool sold seperately
Step Three
![Step Three step3](/images/products/step3.gif)
Use a hammer to flatten the end of the hose
Step Four
![Step Four step4](/images/products/step4.gif)
squeeze on the Solar hose stainless steel Circlip on
Step Five
![Step Five step5](/images/products/step5.gif)
Insert high Temperature gasket
Step Six
![Step Six step6](/images/products/step6.gif)
Tighten with a crescent wrench until gasket is tightly sealed
High Pressure/ High Temperature Fittings
![connected](/images/connected.gif)
No. | Item | Material |
---|---|---|
1 | Nut | Brass |
2 | Metal Hose | SUS304 / SUS316L |
3 | Gasket | 350 C High-temperature resistance seal |
4 | Cir-Clip | Stainless Steel SUS304 |
Technical specifications
![Insulation pipe](/images/gdflex-td-insulationpipe.gif)
Item | Description |
---|---|
Material | High quality synthetic elastomer (EPDM based) with a complete closed-cell structure. |
Temperature range | From -50° C to +150° C (up to 175 C operating intermittent.) |
Flammability :actual burning behavior | DIN 4102-B2 self-extinguishing, no fireball drops, limited fire spreading |
Water Vapor permeability | u>3000 |
Thermal Conductivity W/(m.K) | R 4.8 (.035 W/mk) |
![Jacketing pipe](/images/gdflex-td-foil1.gif)
Item | Description |
---|---|
Material | UV resistant and high mechanical resistant protective film |
UV Resistance | Excellent UV and weather resistant properties |
![temprature sensor wire](/images/gdflex-td-SENSORWIRE3.gif)
Item | Description |
---|---|
Temperature Range | from -50° C to +200° C |
Flexible Copper | 0.75mm2 |
Wire Insulation | Silicon |
Rated Voltage | 300/500 V |
Electric Resistance | 23.0 Ohm/km |
