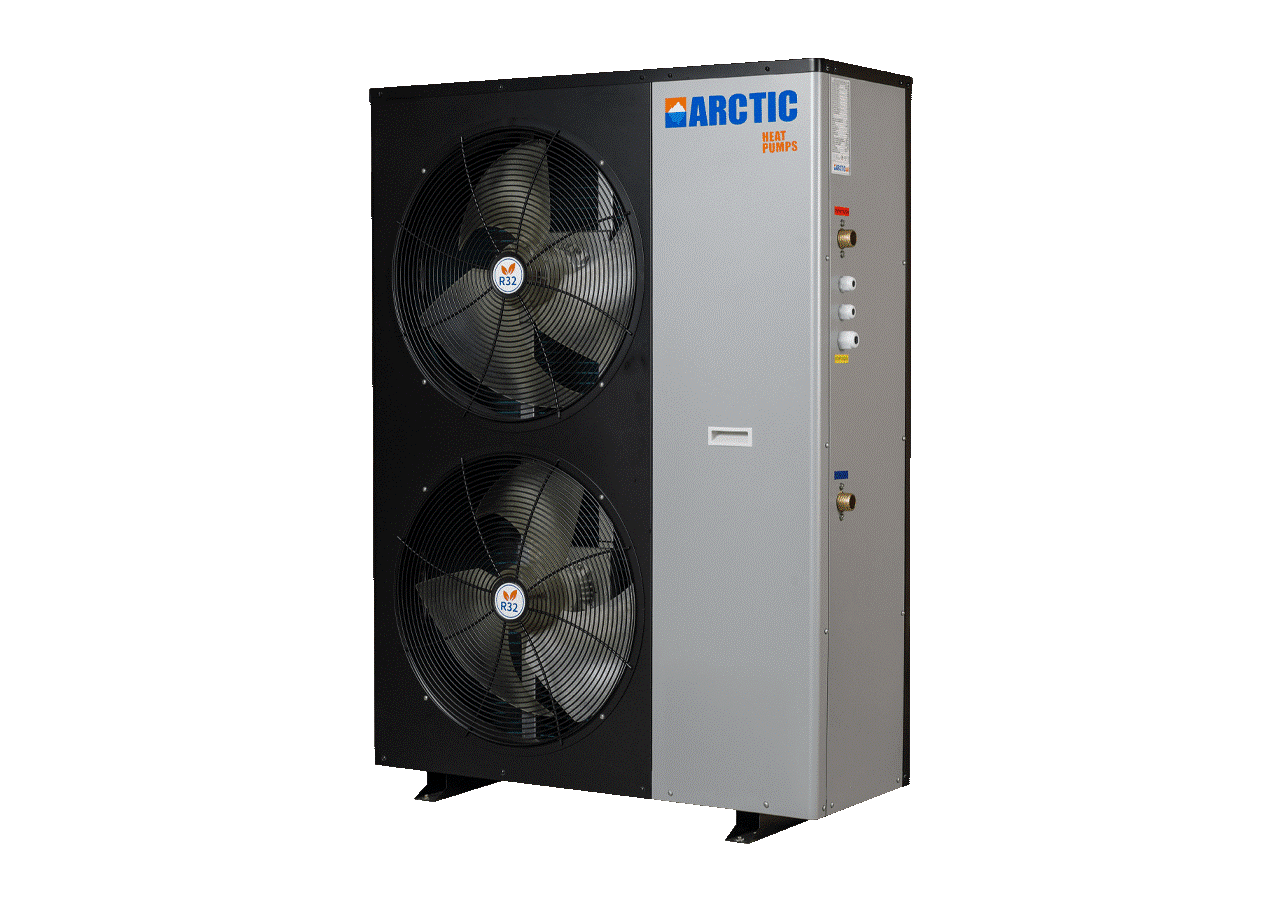

EVI heat pump with DC Inverter. Works down to -31 F (-35 C). This air to water heat source is the most efficient cold weather heat pump on the Market. Heats and cools with over 70% savings of traditional heating equipment.

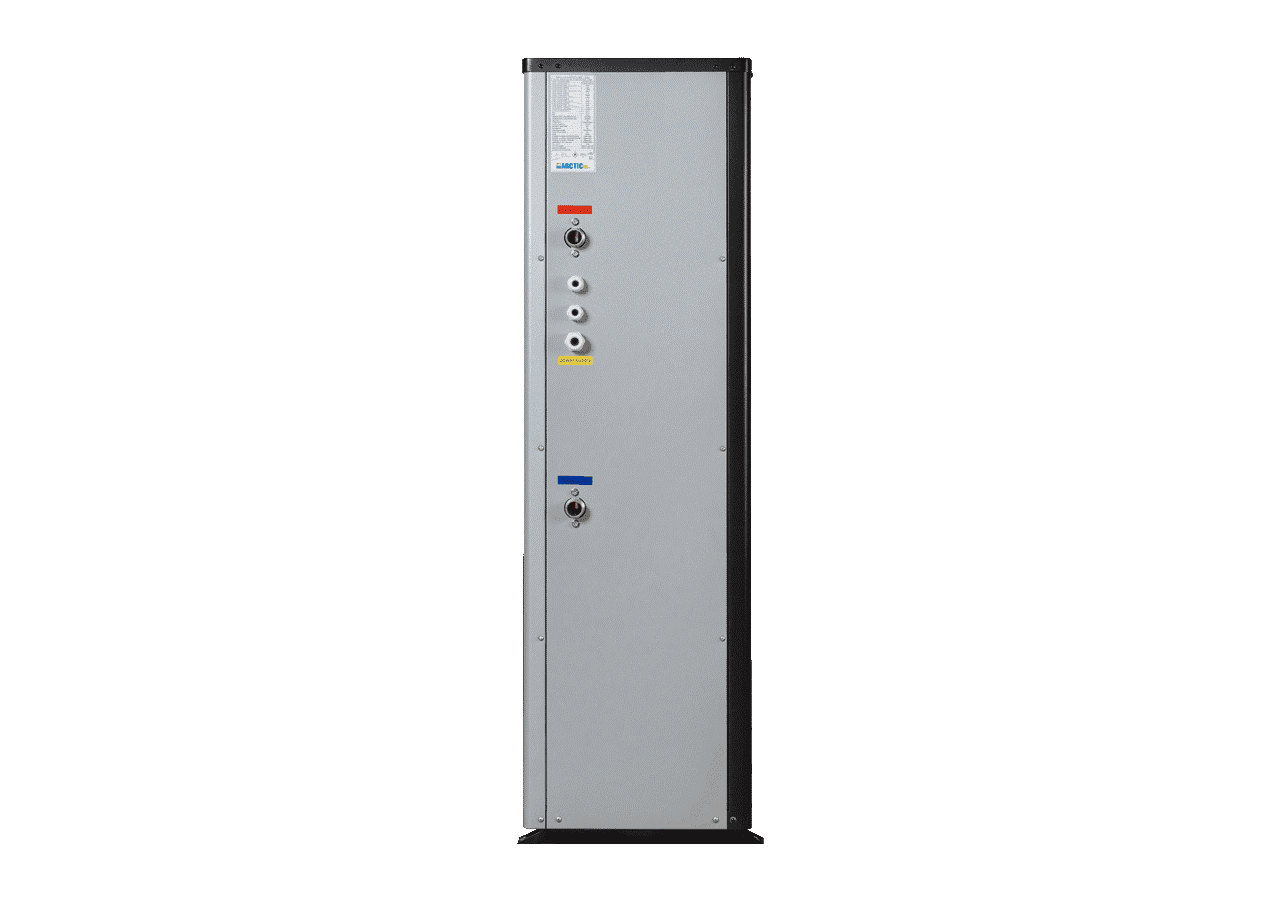

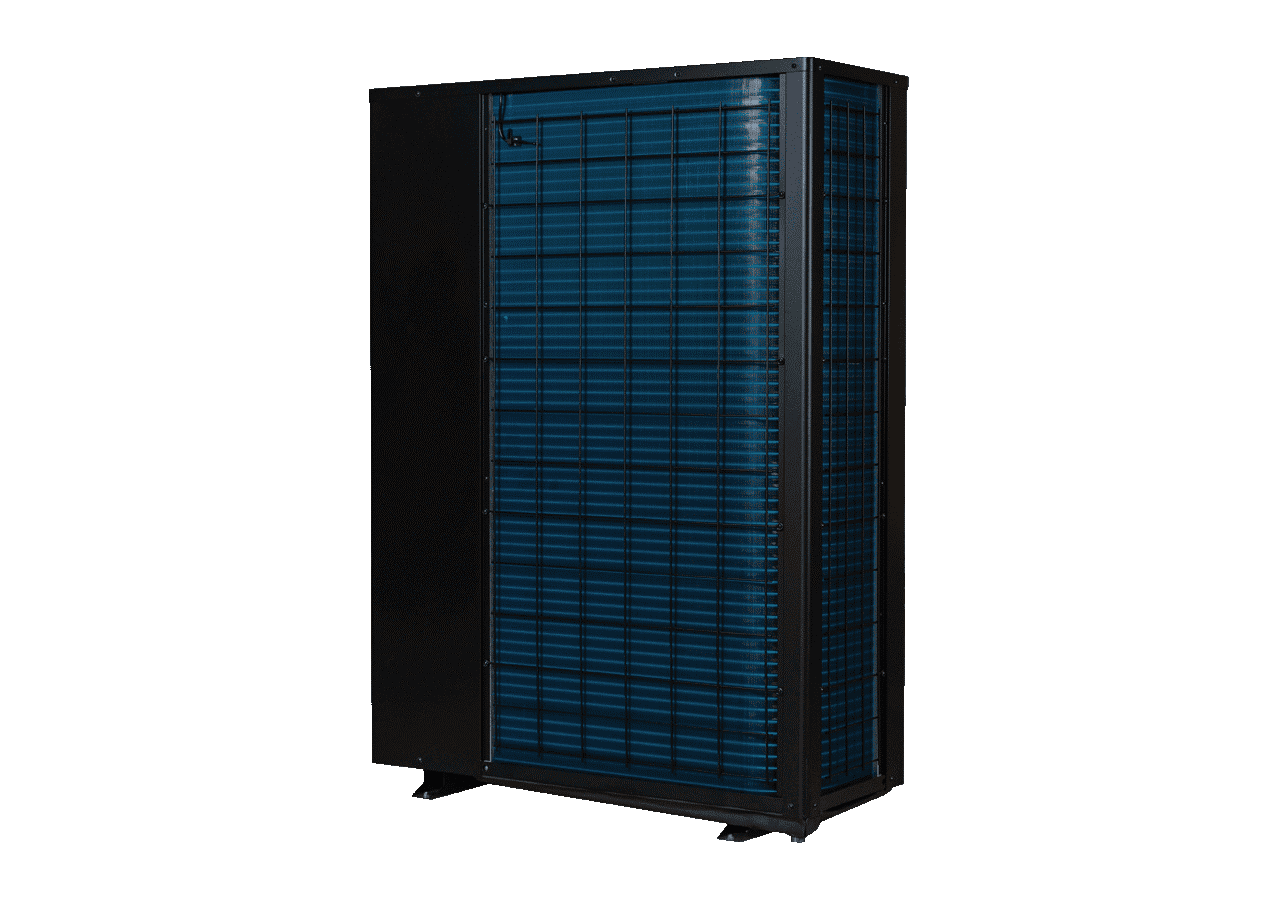

Arctic Heat Pump 050ZA/BE-R32 - 52,000 BTU
USD$ 6,484.56
SKU:
N-539
Arriving Soon. Contact us for the ETA
Arctic Heat Pump 050ZA/BE – 15KW (Heating/Cooling)
Heats & Cools - 52,000 BTU - DC Inverter with EVI
Features
Antifreeze Protection
Includes Touch Screen Heat Pump Controller
Easy to operate Touch Screen controller. Set the water temperature and other parameters as you need and monitor unit operation.
Shock Absorption Technology
Three Modes
Heating, Cooling, and Auto
Includes Touch Screen Heat Pump Controller
Easy to operate Touch Screen controller. Set the water temperature and other parameters as you need and monitor unit operation.
Wi-Fi Remote Control Option
Control your Arctic Heat Pump and know the current operation of the heat pump at any time via your phone.
Operating Temperature Range
-4°F (-20°C) to 127°F (53°C)
Double Rotor DC Inverter Compressor
Spiral Titanium Heat Exchanger
Ultra Quiet DC Brushless Fan Motor
Low Noise Operation
Intelligent Defrost
Specifications
01
1" water connections
02
Max Amps 34.10
03
220-240 VAC
04
Output 15 Kw (52,000 BTU)
05
Weight 258 LBS (117 Kg)
06
Flow rate 11.36 GPM (pump sold separately)
07
39.40" long x 17.30" wide x 54.90" tall
08
1 year parts warranty - 2 year compressor warranty (Extended Warranty Available)
Specification Table - Arctic R32 DC Inverter EVI Heat Pumps
 |
|||||
 |
 |
 |
|||
| Model | MACHRW | 035ZA/(BE)-R32 | 050ZA/(BE)-R32 | 060ZA/(BE)-R32 | |
| Power Supply | V/P/Hz | 220~240/1/60 | |||
| Maximum Water Temperature (Heating) | °C/°F | 50/122 | |||
| Minimum Water Temperature (Cooling) | °C/°F | 5/41 | |||
| Ambient Temp Low Limit | °C/°F | -35/-31 | |||
| Ambient Temp High Limit | °C/°F | 43/109 | |||
| Rated Heating Capacity | Ambient Temp 8.33°C Water Outlet 40.56°C |
kW/BTU | 10.0/34,121 | 15.0/51,182 | 18.0/61,418 |
| Heating Power Input | kW | 2.7 | 4.05 | 4.86 | |
| Heating Current Input | A | 11.7 | 17.6 | 21.1 | |
| Co-Efficiency of Performance | COP | 3.7 | 3.7 | 3.7 | |
| Rated Heating Capacity | Ambient Temp -8.33°C Water Outlet 40.56°C |
kW/BTU | 7.0/23,884 | 11.0/37,533 | 13.0/44,357 |
| Heating Power Input | kW | 2.5 | 3.93 | 4.64 | |
| Heating Current Input | A | 10.9 | 17.1 | 20.2 | |
| Co-Efficiency of Performance | COP | 2.8 | 2.8 | 2.8 | |
| Rated Heating Capacity | Ambient Temp -20°C Water Outlet 45°C |
kW/BTU | 6.0/20,472 | 10.0/34,121 | 12.0/40,945 |
| Heating Power Input | kW | 2.95 | 5.13 | 6.32 | |
| Heating Current Input | A | 13.0 | 21.6 | 26.5 | |
| Co-Efficiency of Performance | COP | 2.0 | 1.9 | 1.9 | |
| Rated Cooling Capacity | Ambient Temp 35°C Water Outlet 6.67°C |
kW/BTU | 7.1/24,226 | 10.5/35,827 | 12.2/41,628 |
| Cooling Power Input | kW | 3.20 | 4.16 | 4.97 | |
| Cooling Current Input | A | 13.9 | 18.1 | 21.6 | |
| Co-Efficiency of Performance | COP | 2.2 | 2.5 | 2.5 | |
| Total Load | Amps | 23.10 | 34.10 | 36.70 | |
| Breaker Sizing | Amps | 30.0 | 40.0 | 40.0 | |
| Nominal Water Flow Volume | GPM/m³/h | 7.57 / 1.72 | 11.36 / 2.58 | 13.65 / 3.1 | |
| Water Side Pressure Drop | Ft of Head/kPa | 13.39 / 40 | 16.73 / 50 | 26.77 / 80 | |
| Water Inlet/Outlet (External Threaded) | inch | 1" | 1" | 1" | |
| Compressor | Type | Twin-rotary | |||
| Speed Range | Hz | 30-100 | |||
| Brand | Panasonic | ||||
| Refrigerant | R32 | ||||
| Refrigerant Amount | OZ/KG | 52.91/1.5 | 70.55/2.0 | 70.55/2.0 | |
| Sound Level (1 meter distance) | dB(A) | 53 | 54 | 55 | |
| IP Rating | IPX4 | ||||
| Net Weight | KG/LBS | 84/185 | 117/258 | 119/262 | |
| Unit Dimensions(L/W/H) | mm | 1020/440/880 | 1000/440/1395 | 1000/440/1395 | |
| Unit Dimensions(L/W/H) | inches | 40.2"/17.3"/34.6" | 39.4"/17.3"/54.9" | 39.4"/17.3"/54.9" | |
| Certification |  |
|
|
||
RETURN POLICY:
We want you to be 100% satisfied with your purchase, if you are not, ship it back to us in the original packaging condition and we will refund your purchase less a 10% restocking fee, provided the equipment is received in good condition. Refund offer valid for 30 days from receipt of product.
WARRANTY:
We feel that being honest is a much better policy to win your trust rather than trying to lure you with nearly impossible statements such as lifetime warranty. Nothing lasts forever! Our warranty policy is simple; we offer a 1 year warranty on all parts and a 2 year warranty on the compressor. With this warranty you will get NO hassle next business day replacement (if shipping service and inventory permits). However, as a valued customer you will get technical support through the lifetime ownership of your product. Our Heat Pump warranty cover failures that occur during normal operational conditions or manufacture defects. It does not cover failure due to inappropriate operation such as incorrect installation or physical damage.
When making a warranty claim we may require images to verify the claim.
Connect with an Arctic
Heat Expert
No one knows air to water heat pumps like we do!
Have questions about our energy-efficient heating solutions? We're here to help! Whether you need product details, installation support, or assistance with an order, our team is ready to assist you.
Get in touch, no matter where you’re at in your project plans. We’d be so happy to help!
Frequently Asked Questions
What is EVI technology, and how does it help in cold climates?
EVI stands for Enhanced Vapor Injection. It is a state-of-the-art compressor technology that injects additional refrigerant vapor into the compressor cycle. This allows Arctic Cold Climate Heat Pumps to efficiently extract thermal energy from ambient air even at freezing temperatures as low as -22°F (-30°C).
Can I use an Arctic Air-to-Water Heat Pump for radiant floor heating?
Yes, absolutely. Arctic EVI heat pumps are designed specifically for hydronic heating systems. They are the perfect energy-efficient replacement for traditional boilers, providing perfectly heated water for radiant floor heating, high-wall fan coils, and domestic hot water.
Why do some Arctic Heat Pump models use R32 refrigerant?
R32 is a next-generation refrigerant that has a much lower Global Warming Potential (GWP) than traditional options. R32 offers superior thermodynamic properties, meaning the heat pump achieves a higher Coefficient of Performance (COP), heating your home faster while consuming less electricity.
What BTU capacities are available for Arctic Cold Climate Heat Pumps?
We offer a versatile range of monobloc units to suit different home sizes and extreme weather demands. Capacities range from the 035ZA/BE model at 29,000 BTU, up to our highly powerful 060ZA/BE-R32 model delivering 62,000 BTU for maximum cold-weather performance.
Do these heat pumps require a backup heating source in severe winter climates?
While Arctic EVI heat pumps are engineered to maintain high heating capacity in sub-zero temperatures, we often recommend integrating a hydronic buffer tank with a backup electric element. This ensures your primary hydronic distribution system always has adequate thermal storage during extreme polar vortex events.
Can an EVI Air-to-Water Heat Pump provide cooling in the summer?
Yes. These systems are fully reversible. During the summer months, the heat pump chills the water, which can then be circulated through hydronic fan coils to provide efficient whole-home air conditioning, giving you complete year-round climate control.
Why is R32 refrigerant better for pool heat pumps?
R32 is a next-generation refrigerant with a lower Global Warming Potential (GWP) than R410A. It provides superior heat transfer efficiency, reducing energy consumption and carbon footprint while heating your pool faster.
Can I heat my pool and hot tub with a single unit?
Yes, Arctic Heat Pumps feature unique dual-setpoint controls. This allows you to maintain one temperature for your swimming pool and a separate, higher temperature for your spa or hot tub using a single efficient system.
How does 'Chill Technology' work in the summer?
Our units are reversible. In 'Chill Mode,' the heat pump extracts heat from the pool water and releases it into the air, allowing you to lower pool temperatures during extreme summer heat for a more refreshing swim.
Is a titanium heat exchanger necessary for saltwater pools?
Absolutely. Titanium is immune to corrosion from salt and chlorine. We use oversized spiral titanium heat exchangers to ensure maximum durability and efficient heat transfer, even in harsh chemical environments.
How much energy can a DC Inverter pool heat pump save?
A DC Inverter heat pump can save up to 50-80% on energy costs compared to traditional on/off units. By modulating the compressor speed to match demand, it avoids constant power spikes and maintains water temperature with minimal electricity.
