Solar Piping Aurora Flex 3/4” Solar Insulated Pipe DIN20

Aurora Flex Solar 3/4" Stainless Steel Piping -DIN20 with 3/4" EPM Insulation

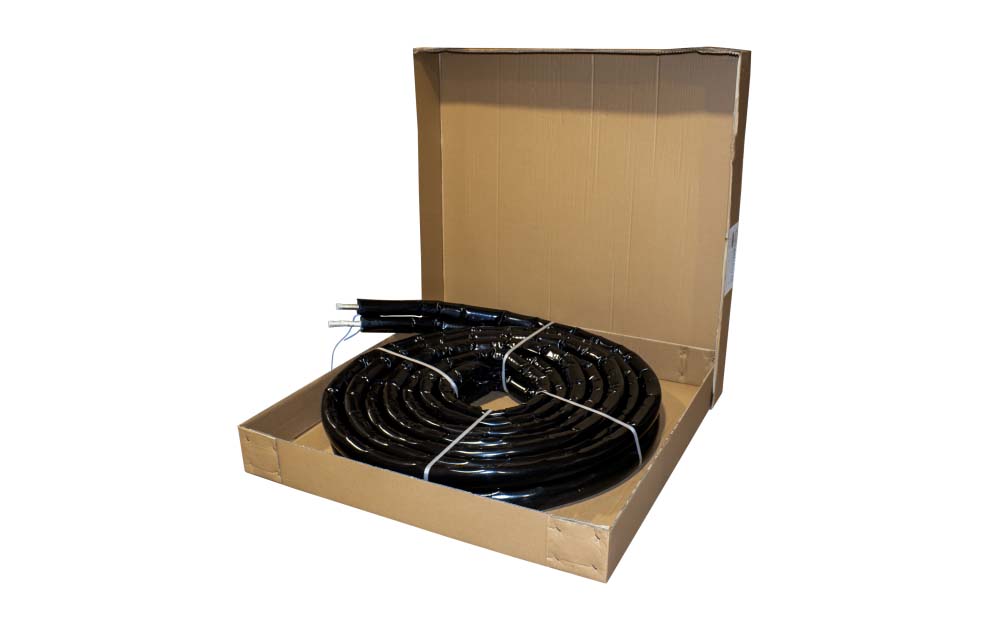

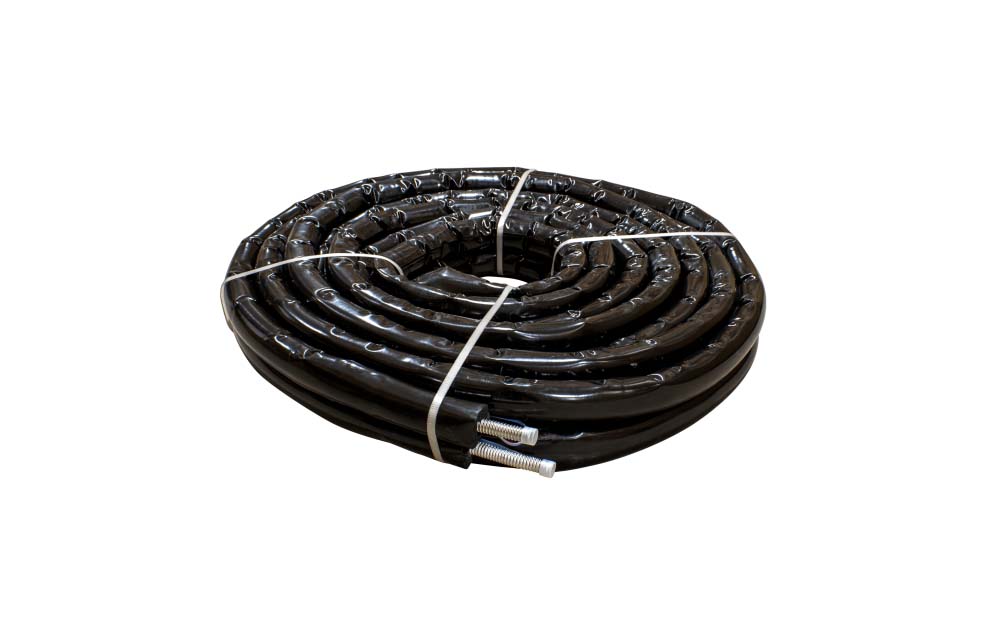

Stainless Steel SUS 304 (3/4" OD & 5/8" ID) solar piping with high temp 3/4" EPDM insulation and weather proof coating. Includes silicon wire for temperature probe. Guarantees a professional installation in 1/4 the time it would take to do a copper installation. No leaks and no soldering! 100 feet per roll. Each carton contains 1 x 100 ft coil.

Features

No Soldering- Leak FREE	3/4" 304 Stainless Steel pipes

Installation Procedure

	Step one: Cut the hose to your desired length with cutter
	Step two: Put a fitting onto the solar hose, put one end into flange tool NOTE Flange tool sold separately
	Step three: Use a hammer to flatten the end of the hose
	Step four: squeeze on the Solar hose stainless steel Circlip on
	Step five: Insert high Temperature gasket
	Step six: Tighten with a crescent wrench until gasket is tightly sealed

High Pressure/ High Temperature Fittings

No. Item Material 1 Nut Brass 2 Metal Hose SUS304,SUS316L 3 Gasket 350? High-temperature resistance seal 4 Cir-Clip Stainless Steel SUS304

Technical specifications

	INSULATION Material High quality synthetic elastomer (EPDM based) with a complete closed-cell structure. Temperature range From -50 C to +150 C (up to 175 C operating intermittent.) Flammability :actual burning behavior DIN 4102-B2 self-extinguishing, no fireball drops, limited fire spreading Water Vapor permeability u 3000 Thermal Conductivity W/(m.K) R 4.8 (.035 W/mk)
	JACKETING Material UV resistant and high mechanical resistant protective film UV Resistance Excellent UV and weather resistant properties
	TEMPERATURE SENSOR WIRE Temperature Range from -50 C to +200 C Flexible Copper 0.75mm2 Wire Insulation Silicon Rated Voltage 300/500 V Electric Resistance 23.0 Ohm/km
