Pre-Fab-Pump Panels for Hydronic System

Clean, Efficient, and Fast

pre-fab-pump-panels

Want to save both money and time on your Hydronic Heating project? Professionally designed and manufactured pump panels are the best solution for multiple pumps or zoned hydronic systems!

We take all the labor cost out of assembling hydronic pump systems and place the entire unit on an aluminum mounting panel that you simply attach to the wall. This includes all fitting, pumps, shutoff valves, air bleeders, expansion tanks, mixing valves and much more. You save both in time and money with the most professional installation package available. All our system are 100% tested and guaranteed free of leaks.

Plumber in a Box

With a Pre-fab pump panel you save money on labor but more importantly you are guaranteed to have a package that is engineered using best hydronic technical design practices.  Our supplier has been manufacturing hydronic panels for over 35 years!

Flexibility

If you find a package that does not quite meet your requirements we can fully customize our panels to suit your needs. We can also provide much larger systems so simply call us and let us know your requirements.

Save Space

The compact design allows you to place the units on any wall taking up as little as 24” x 36” at a depth of only 13”. The Hydronic Pump Panels provide for a clean custom installation and professional look that can rarely be matched by most pipe fitters all with 100% guarantee!

Features:

Grunfos Alpha Constant Pressure Pump

Brass shut off isolation Valves

Appropriately size expansion tank

Temperature & pressure gauges

Automatic Air Eliminator

Fill drain and purging system

3-way Mixing valves

Water/Glycol make up with Back Flow Valve

Commercial grade type T cooper for all fittings

1” supply and return to zone Manifolds

1 ¼”-2” Primary line depending on number of pumps

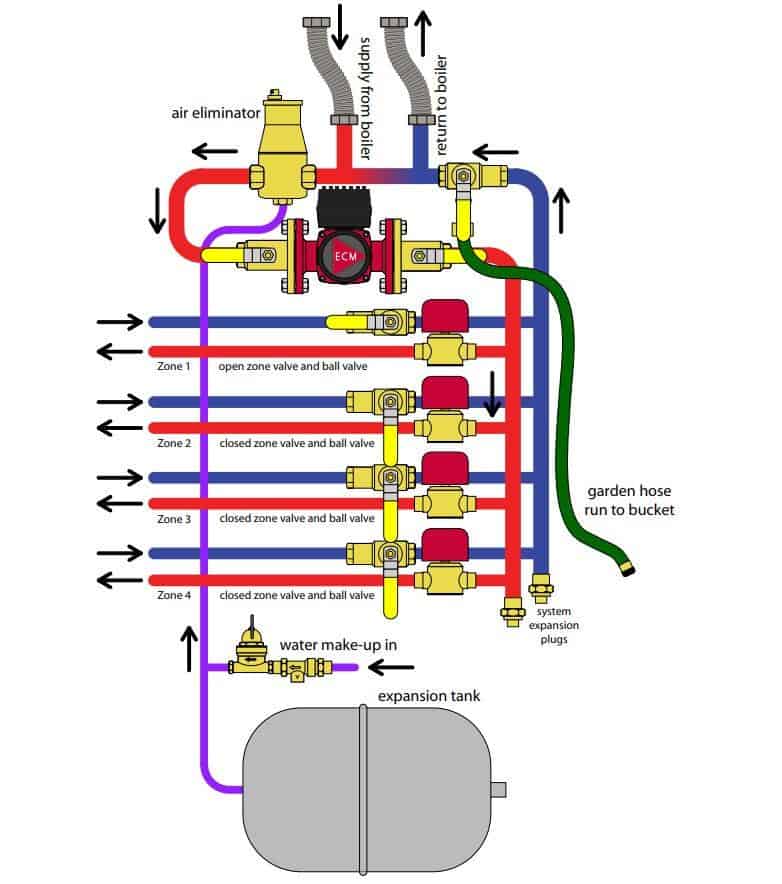

Pre-Fab Pump Panel with ECM Pump and Zone Vales

Pre-Fab Pump Panel with ECM Pump and Zone Vales

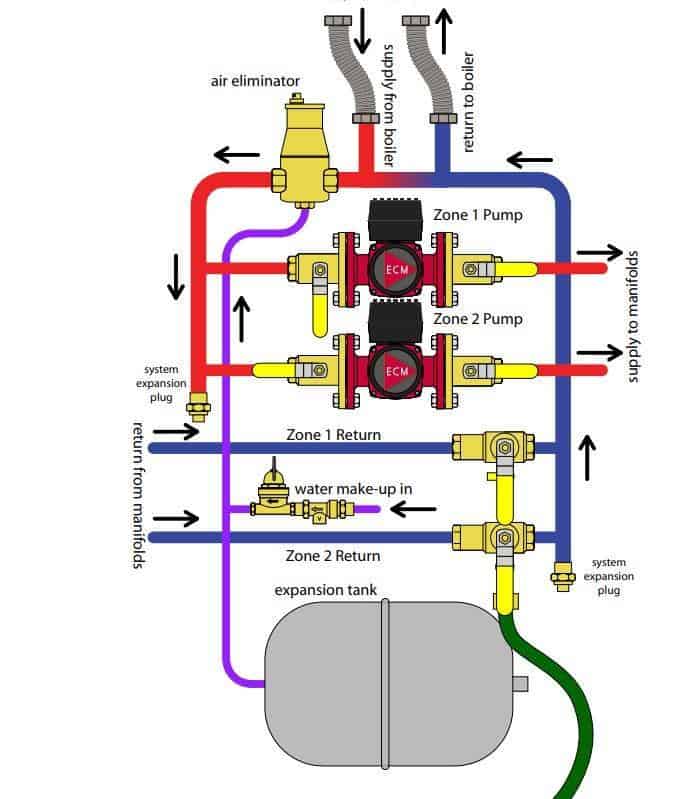

Pre-Fab Pump Panel with ECM Pumps

Pre-Fab Pump Panel with ECM Pumps

Examples of Common Hydronic Pre-Fab Pump Panels

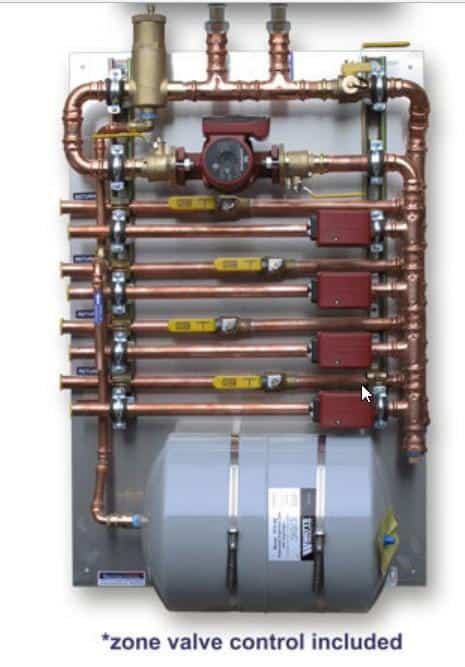

Pre-Fab Pump Panels-example1

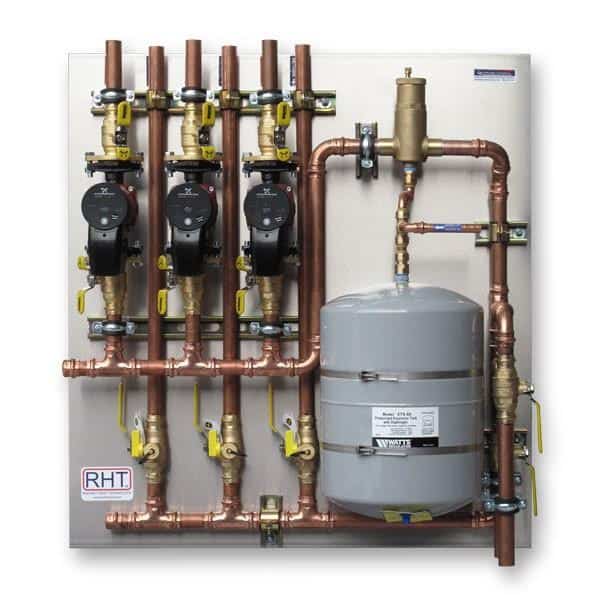

Pre-Fab Pump Panels-example2

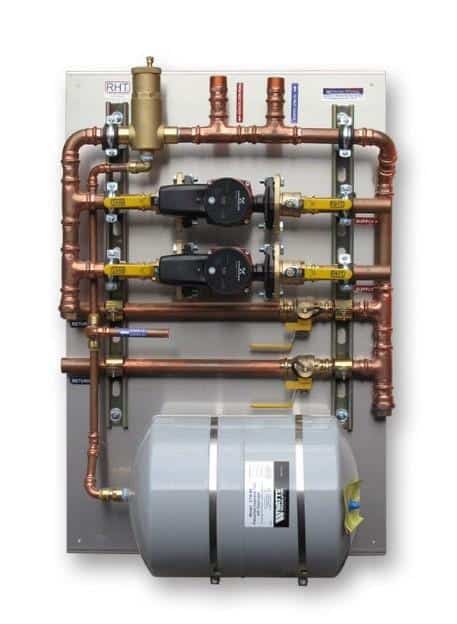

Pre-Fab Pump Panels-example3
