Resol DeltaTherm HC mini - Heating Controller - Full Kit

USD$ 823.59
SKU: N-543
3 In Stock

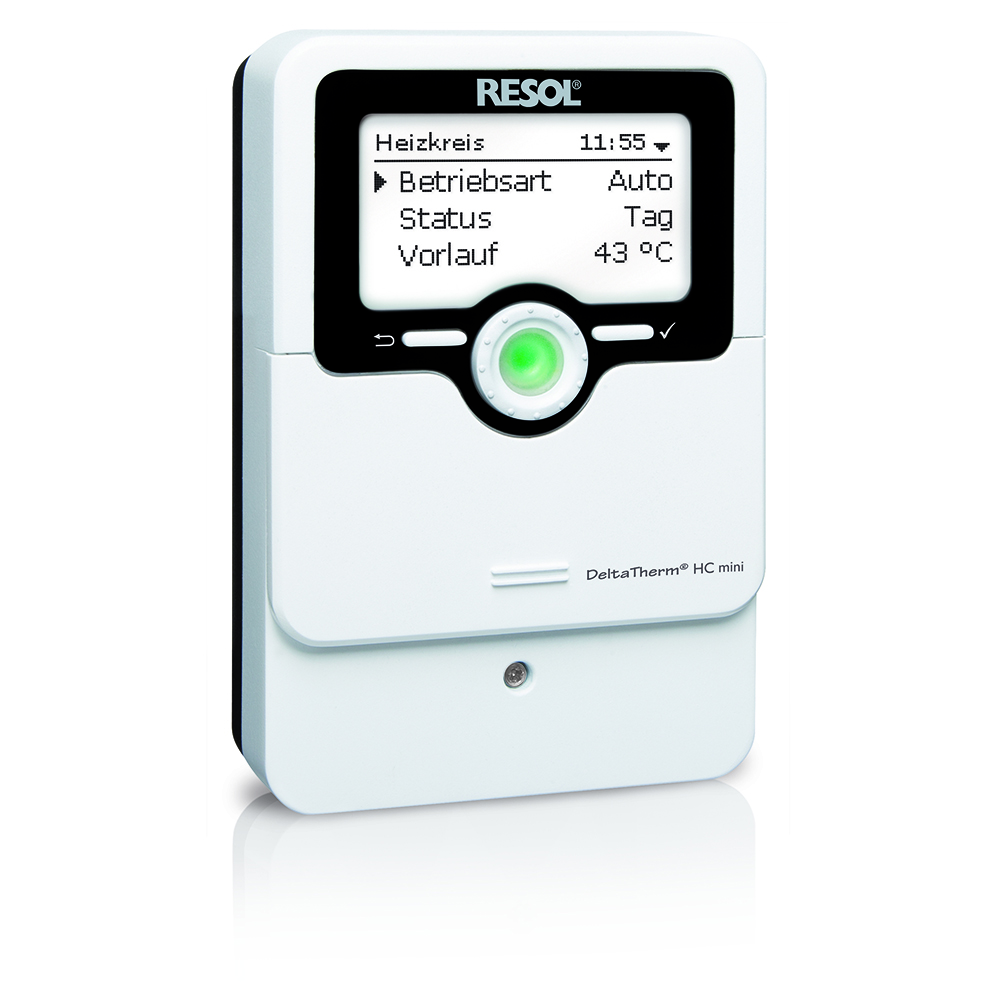

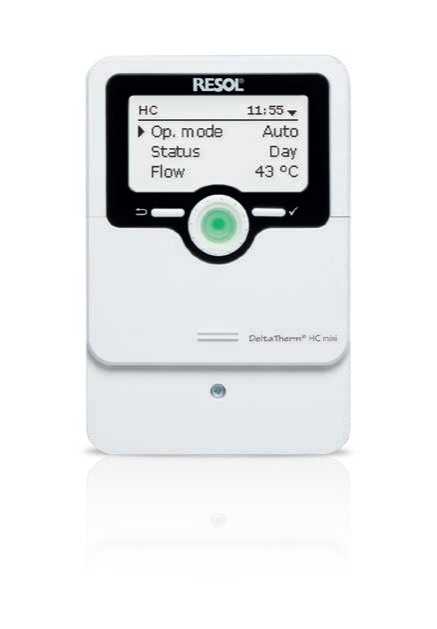

Resol DeltaTherm HC mini - Heating Controller - Full Kit

The DeltaTherm® HC mini offers a compact and user-friendly solution for simple heating systems. It can control a weather-compensated heating circuit and its backup heating demand. Additional DHW functions such as circulation or thermal disinfection, and the efficient implementation of further heating circuits are possible with EM Extension modules*. Additionally, there’s a choice of 5 different operating modes, a boiler protection option and a night correction.

Due to the commissioning menu and the 4 pre-configured basic systems, configuration is quick and easy.

In summer, the heating circuit takes over the demand-based cooling by means of a humidity sensor for dew point calculation*.

The DeltaTherm® HC mini
Wireless Outdoor Sensor - HBX WAV-0110

Full kit includes

3 Pt1000 sensors (1 x FAP13, 1 x FKP23, 1 x FRP6)

Heating control, simple and efficient

  • 4 pre-configured basic systems
  • Cooling over the heating circuit with humidity sensor*
  • Up to 5 extension modules can be connected via the VBus®, up to 7 weather-compensated heating circuits*
  • 6 operating modes, boiler protection, room thermostat and night correction
  • o Holiday mode, chimney sweeper function and screed drying function
  • Modulating heating control with 0-10 V boiler control
  • Weather-compensated control with room influence or demand-based room control with up to 5 room temperature sensors
  • Data logging, storing, easy transfer of controller adjustments prepared and firmware updates via MicroSD card
  • Remote access with a room control unit or the VBus®Touch HC App
  • Heat pump demand (optional)

Technical Data

Inputs 5 inputs for Pt1000, Pt500 or KTY temperature sensors (can optionally be used for remote controls, operating mode switches or potential-free switches, 1 of them convertible to V40), 1 analogue input for Grundfos Direct Sensor or FRH humidity sensor*
Outputs 3 semiconductor relays, 1 potential-free extra-low voltage relay, 2 PWM outputs (convertible to 0–10 V)*
PWM frequency 512 Hz
PWM voltage 10.8 V
Switching capacity 1 (1) A 240 V~ (semiconductor relay)
1 (1) A 30 V⎓ (potential-free relay)
Total switching capacity 3 A 240 V~
Power supply 100–240 V~ (50–60 Hz)
Supply connection Type X attachment
Standby 0.62 W
Temperature controls class VIII
Energy efficiency contribution 5%
Mode of operation Type 1.B.C.Y action
Rated impulse voltage 2.5 kV
Data interface VBus®, MicroSD card slot
VBus® current supply 60 mA
Functions Weather-compensated heating circuit control, backup heating, room thermostat, chimney sweeper function, screed drying function
Housing Plastic, PC-ABS and PMMA
Mounting Wall mounting, mounting into patch panels is possible
Indication / Display Full graphic display, operating control LED (Lightwheel®)
Operation 4 buttons and 1 adjustment dial (Lightwheel®)
Ingress protection IP 20 / EN 60529
Protection class I
Ambient temperature 0…40 °C
Degree of pollution 2
Relative humidity 10…90 %
Fuse T4A
Maximum altitude 2000 m above MSL
Dimensions 110 × 166 × 47 mm
