Aurora Flex Solar 3/4" to 1" FPT Adapter DIN 20 to DIN 25
Aurora Flex to 3/4" to 1" Female Pipe Thread (FPT) adapter
- Model: N-272
- Weight: 1lbs
- Manufactured by: Aurora Flex
Features
No Soldering- Leak FREE
![No Soldering- Leak FREE pipes fits cropped](/images/products/pipes-fits-cropped.jpg)
3/4' 304 Stainless Steel pipes
![3/4' 304 Stainless Steel pipes pipes fits cropped](/images/products/pipe.jpg)
Installation
Step One
![Step One step1](/images/products/step1.gif)
Cut the hose to your desired length with cutter
Step Two
![Step Two step2](/images/products/step2.gif)
Put a fitting onto the solar hose, put one end into flange tool NOTE: Flange tool sold seperately
Step Three
![Step Three step3](/images/products/step3.gif)
Use a hammer to flatten the end of the hose
Step Four
![Step Four step4](/images/products/step4.gif)
squeeze on the Solar hose stainless steel Circlip on

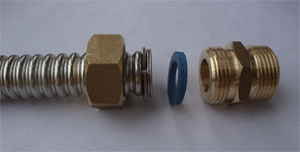

Step Five
![Step Five step5](/images/products/step5.gif)
Insert high Temperature gasket

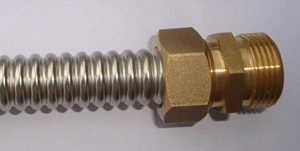

Step Six
![Step Six step6](/images/products/step6.gif)
Tighten with a crescent wrench until gasket is tightly sealed

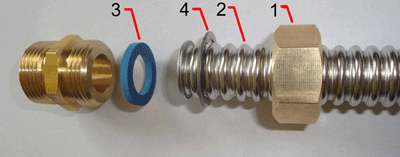

High Pressure/ High Temperature Fittings
![connected](/images/connected.gif)
No. | Item | Material |
---|---|---|
1 | Nut | Brass |
2 | Metal Hose | SUS304 / SUS316L |
3 | Gasket | 350 C High-temperature resistance seal |
4 | Cir-Clip | Stainless Steel SUS304 |
