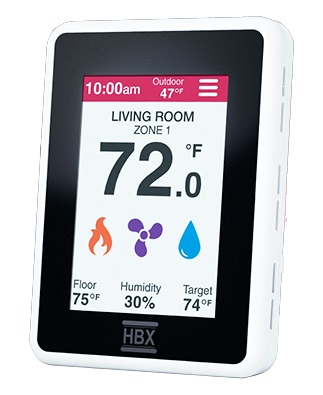

Touch Screen Thermostat - HBX THM-0600

CAD$ 201.11
SKU: N-460
Out of stock. This item can be backordered. Approx. lead time: 6 weeks.

Touch Screen Thermostat - HBX THM-0600

The THM-0600 is a 4 stage fully programmable P.I.D. thermostat for hydronic heating and cooling systems. The large, full graphic display is easy to read and simple to navigate using the touch screen control. When connected to the internet with the Wi-Fi zoning system, the HBX SensorLinx mobile app allows you to control the thermostat remotely anytime, anywhere.

The THM-0600 is designed to work only with the HBX Wi-Fi Zoning System and utilizes only two wires (power and communication) to the ZON-0600 zone control. This eliminates the need to pull wire which makes it ideal for retrofits as well as new installations. The thermostat has two auxiliary sensor inputs that can be used for internal room, external floor or outdoor sensing options. The thermostat includes a universal external sensor with a 10” lead.

HBX ZON-0600 WiFi Enabled Zone Control
HBX THM-0600

The THM-0600 incorporates a built-in humidity sensor for humidity control. Auto humidity allows the thermostat to humidify or dehumidify to the target % automatically based on the outdoor temperature. No manual adjustment is required. The zoning system must be connected to a wifi network for this feature to be applicable.

Program your heating and cooling system around your schedule. With four (4) different schedule options you can be comfortable anytime of the day. Away mode will override the schedule to lower the temperature and increase energy savings.

NOTE: The THM-0600 is designed to work with the ZON-0600 Zone Control. It is not a standalone unit.

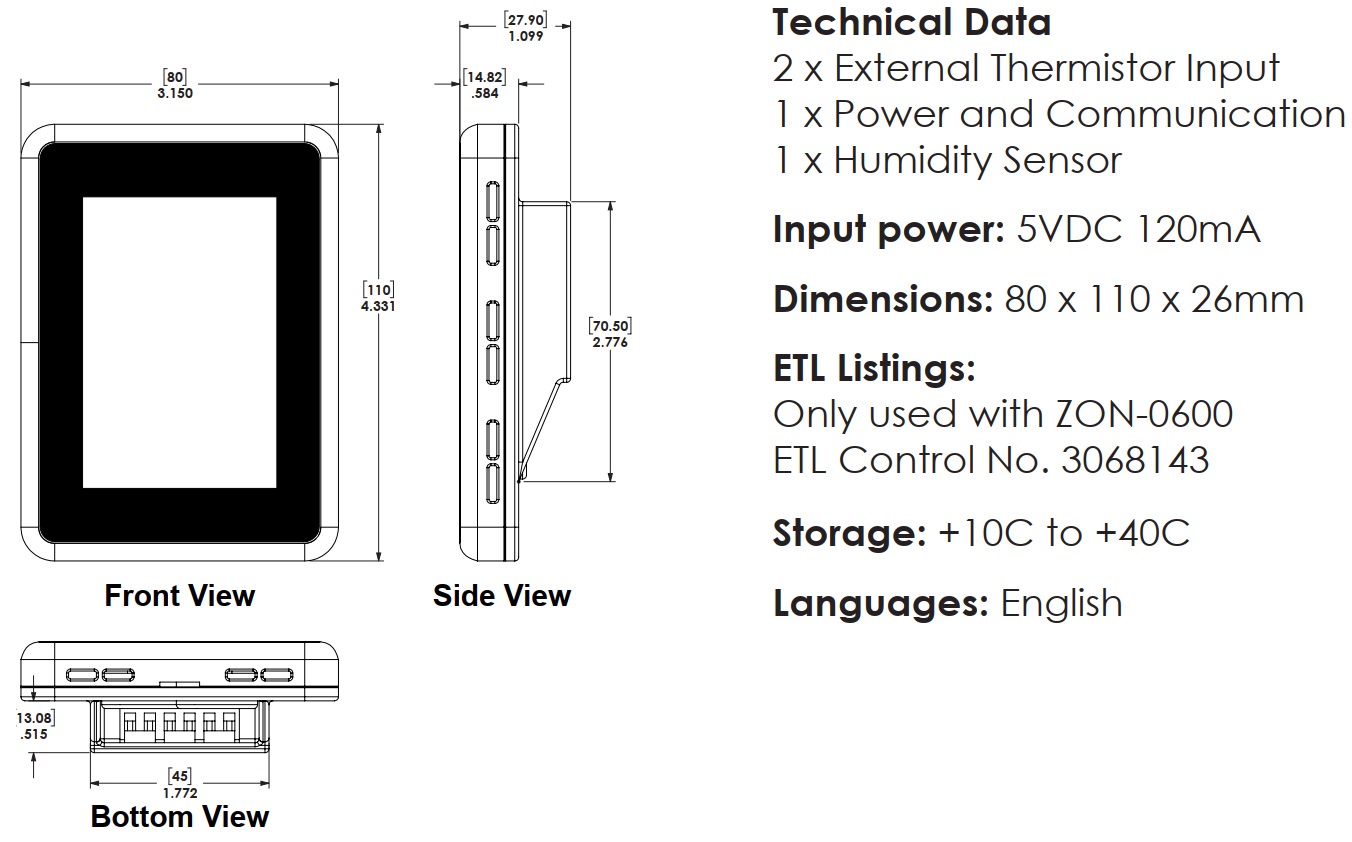

Dimensions

HBX THM-0600 Tech data and dimensions

Features & Benefits

01
Mobile app for Android and Apple devices (SENSORLINX COMPATIBLE)
02
2 Wire thermostat
03
Multiple heating and cooling modes
04
Includes 10' floor sensor for radiant floor heating and cooling
05
Auto heat/cool changeover
06
Away mode for energy savings
07
Automatic humidity control (available only on Version 2.0)
08
Outdoor temperature display by internet (available only on Version 2.0)
09
Time clock update by internet
10

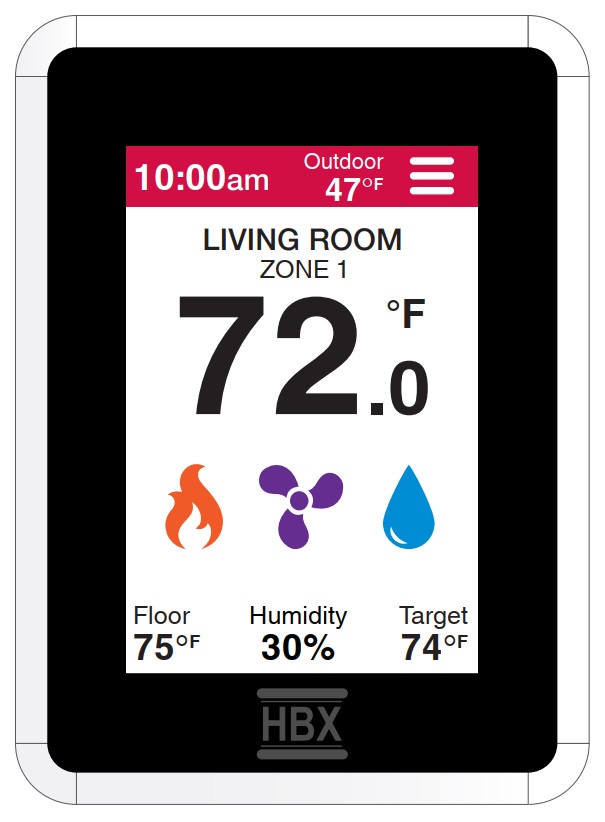

Large, Full Color Graphic Touch Display
11
Easy Programming Menus
12
Programmable schedules
13
Geothermal mode
14
Zone priority
15
DHW capabilities (digital Aquastat)
16
Made In Canada

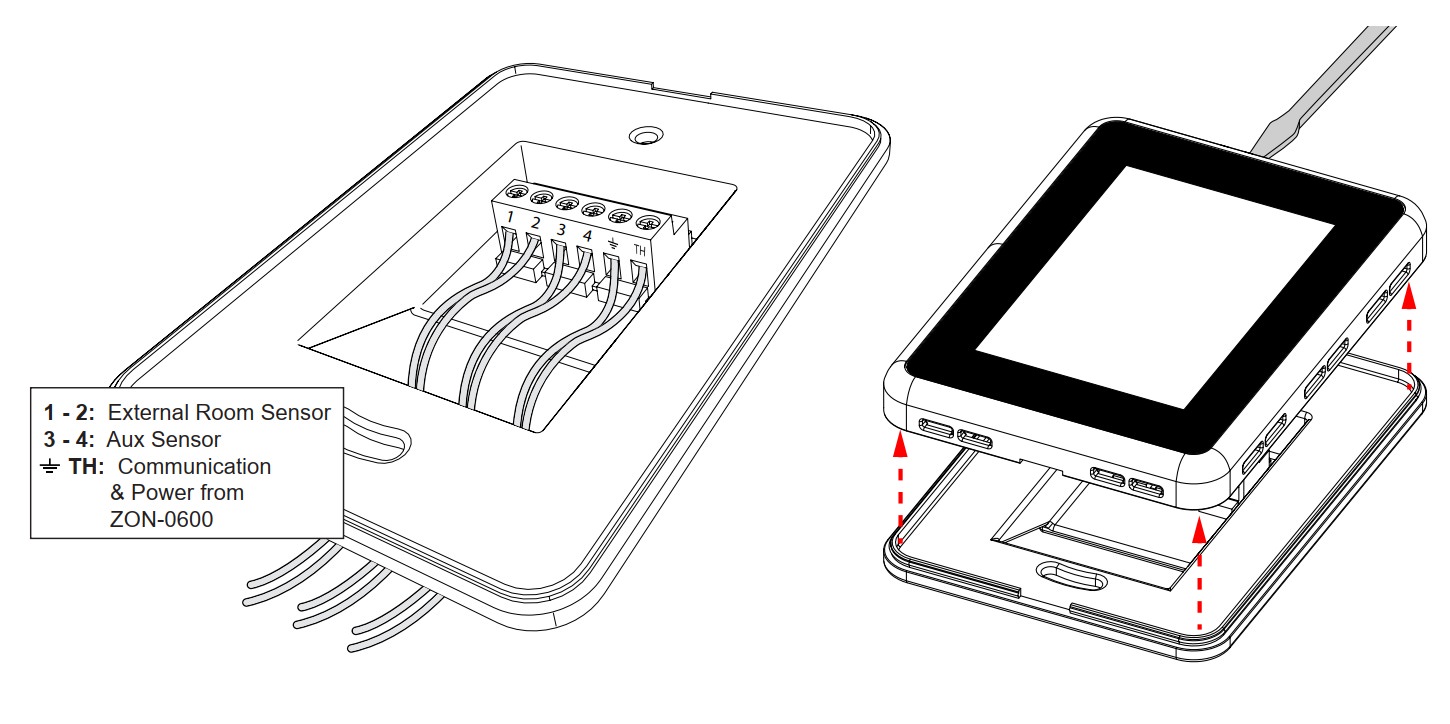

Wiring

THM-0600 Wiring

Visit hbxcontrols.com to view the manual and other documentation.
