Humidity Sensor - RESOL FRH

USD$ 129
SKU: N-437
Out of stock

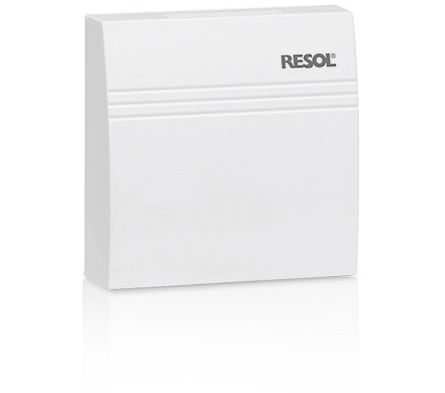

RESOL FRH - Humidity Sensor

The FRH relative humidity sensor is used for measuring the relative humidity as well as the room temperature. For connection to the DeltaSol® MX and DeltaTherm® HC MAX from version 2.06 and DeltaSol® BX Plus (FRHd only) from version 2.06

FRH Humidity sensor (analogue) » incl. JST connection cable

RESOL FRH - Humidity Sensor

Technical Data

01

Housing:

For in-wall mounting, Material ASA, colour: pure white, similar to RAL 9010
02

Cable gland:

at the back
03

Protection type:

IP 10 according to EN 60529
04

Dimensions:

84.5 x 84.5 x 25 mm
05

Measuring range:

Humidity: 0 - 100% RH Temperature: 0 - 40 °C
06

Ambient temperature:

0 - 40°C

DIMENSIONS (mm)

RESOL FRH - Dimensions
RESOL FRH - Mounting
