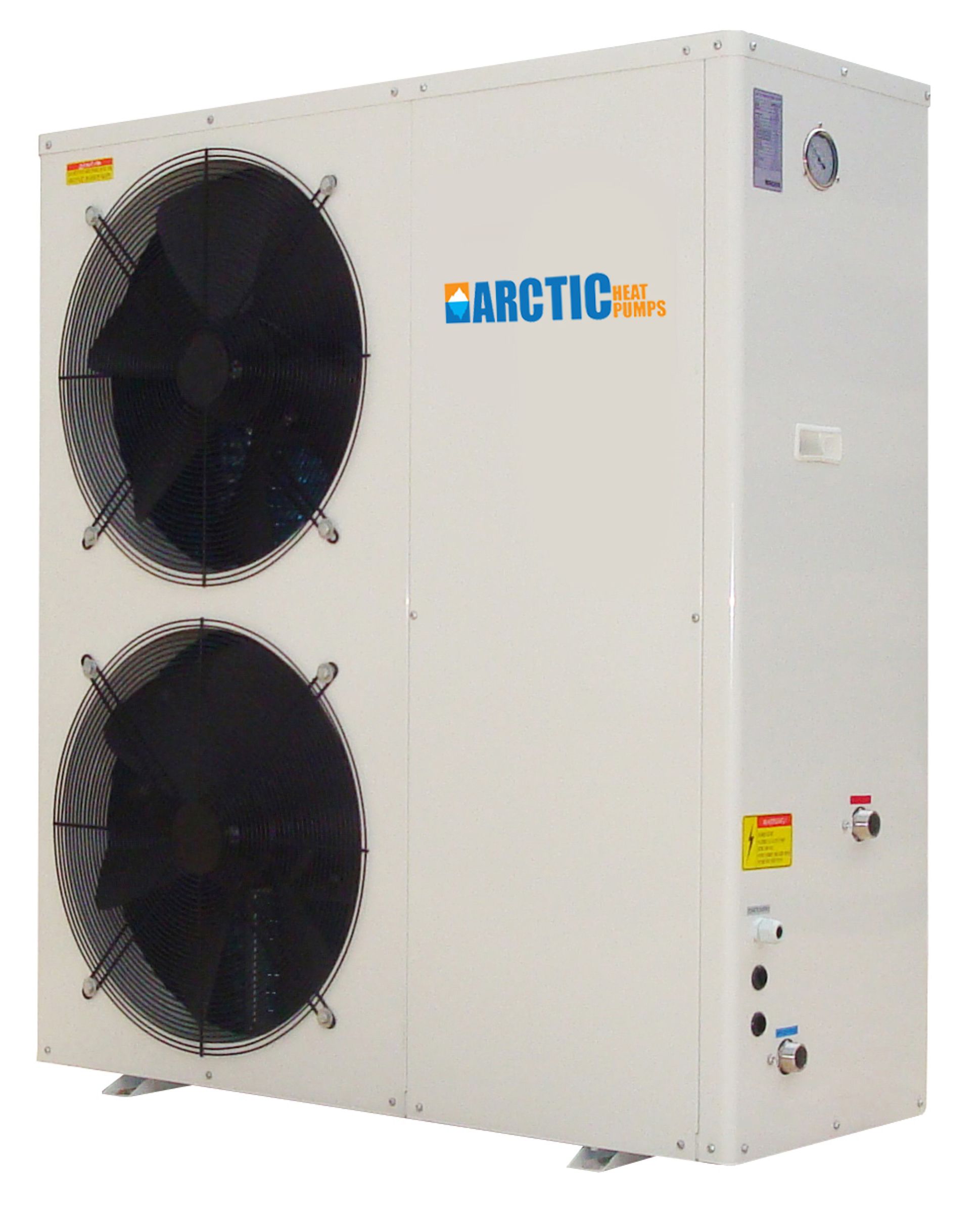

Arctic Titanium Heat Pump for Swimming Pools and Spas - 060ZA/B

USD$ 5,051.26
SKU: N-442
Out of stock. This item can be backordered. Approx. lead time: 6 weeks.
Steel Stand for Arctic Air to Water Heat Pumps:


Arctic Heat Pump 060ZA/B - 28KW (Heats/Cools)

Heats & Chills - 95,500 BTU - DC Inverter

Air to Water Heat pump for pools, hot tubs and spas

060ZA/B Heat/Chill Heat Pump

060ZA/B Heat/Chill Heat Pump

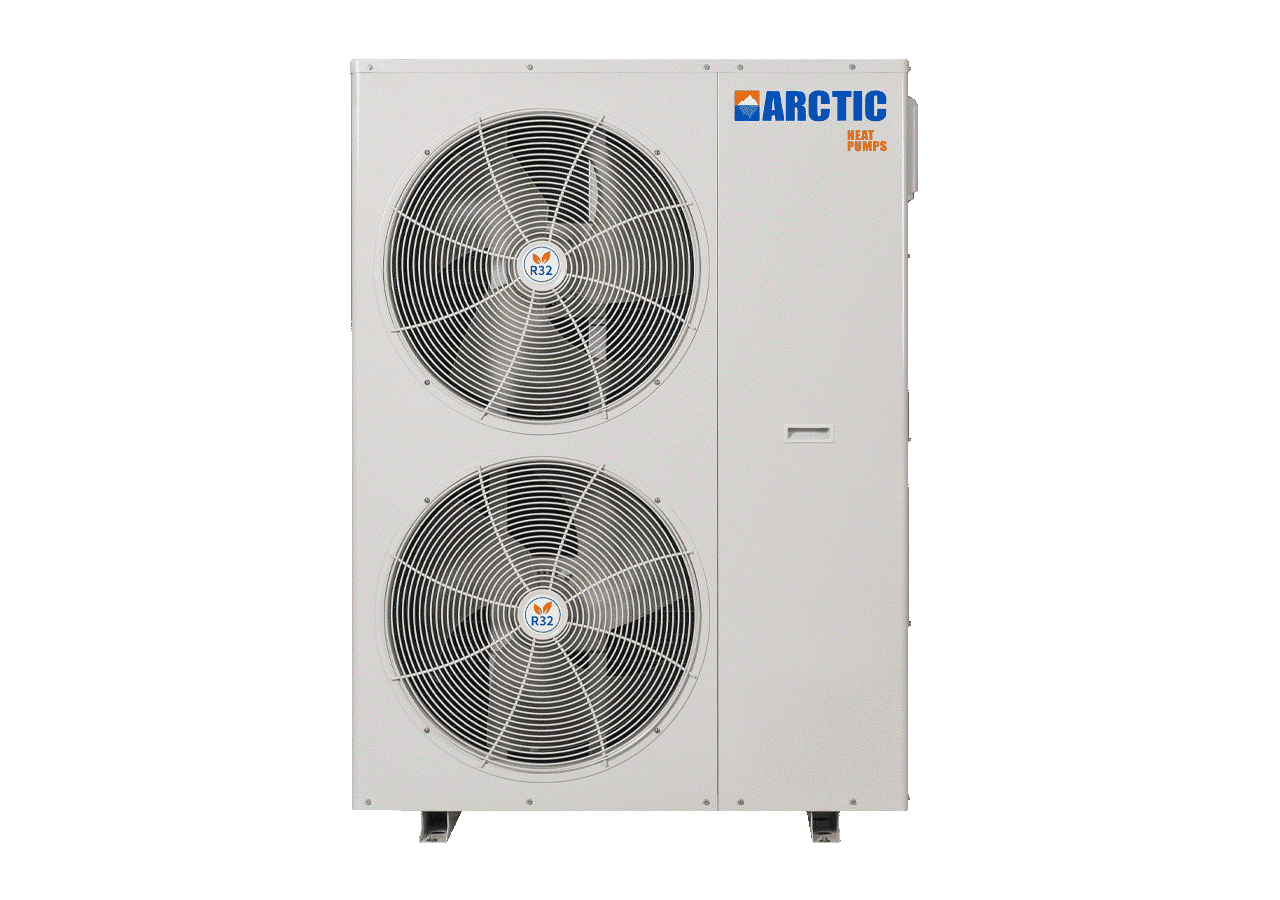

Chiller and Heater in one unit

While hot tub users most often reference the heating requirements, the Arctic Heat Pump is also a chiller if need. That’s right...It can heat and cool based on a simple controller selection. Ideal for hot climates that need a retreat from the hot summer heat! A cold water plunge is a must for Sauna owners. Now you can quickly change your hot tub to a cold plunge tub! Cold water therapy has many health benefits and is growing in popularity in North America as we discover what the Nordic Culture has practiced for centuries.

Excessively hot swimming pools cause problems with the chemical imbalance and can quickly become full of algae if not properly monitored. Chlorine evaporates as the water temperature rises. In areas such as California, Texas, Arizona and Florida, the hot summer temperatures can be difficult for pool owners. The Arctic Pool & Spa Heat Pumps allows owners to reduce the temperatures back down to proper levels. By Chilling your pool you can get reprieve from hot summer heat waves, when the temperature drops, the Arctic Heat Pump will switch back to heating mode.

Heating & Cooling

Heating & Cooling

The Arctic 060ZA/B Heat Pumps works down to -4°F (-20°C). This air to water heat source is the most efficient cold weather heat pump on the market. Heats and cools with over 80% savings of traditional heating equipment. This unit is cable of producing up to 28 Kw or 95,500 BTU of heat energy. No other pool or spa heat pump on the market will outperform the Arctic 060ZA/B in colder weather. This allows you to open your pool earlier and close it later. It is also ideal for energy savings for spas and hot tubs. Working up to 104 F even in 20 F conditions! The Arctic 060ZA/B is great heat pump for most pools.

Three Modes

Three Modes

Heating, Cooling, and Auto

Includes Heat Pump Digital Controller

Includes Heat Pump Digital Controller

Easy to operate LCD controller. Set the water temperature and other parameters as you need, and monitor unit operation.

WiFi Remote Control Option

WiFi Remote Control Option

Control your Arctic Heat Pump and know the current operation of the heat pump at any time via your phone.

Double Rotor DC Inverter Compressor

Double Rotor DC Inverter Compressor

Operating Temperature Range

Operating Temperature Range

-4°F (-20°C) to 113°F (45°C)

Spiral Titanium Heat Exchanger

Spiral Titanium Heat Exchanger

Ultra Quiet DC Brushless Fan Motor

Ultra Quiet DC Brushless Fan Motor

Sound Insulation

Sound Insulation

High Efficiency Fin Heat Exchanger

High Efficiency Fin Heat Exchanger
01
Heat Pump for hot tubs, spas and smaller pools or swim spas
02
Easy to install with no refrigeration mechanic needed
03
Vibration pads included
04
Drain pan and compressor low temp protection
05
Hot gas defrost
06
Drain Pan Freeze Protection for cold weather
07
TUV Rheinland certified for installation in North America
TUV certification

How it works

The Arctic Heat Pump harness the energy found in the air. By using an oversized evaporator the energy is removed and transferred to the refrigeration. A compressor compresses the gas causing its temperature to increase. The hot gas then passes through a titanium pool heat exchanger where it is transferred directly to the pool or spa water. In cooling mode the unit reverses direction and chills the pool water by removing the heat from the titanium heat exchanger and discharging it out the evaporator.

The unit consumes electricity at a rate of only 1/3 to 1/5 of the heating capacity that it produces. The result is energy savings as high as 80% compared to traditional electric or gas pool or spa heaters. Built in hot gas defrost and drain pan/compressor freeze protection for cold weather performance.

Example Layout - Pool or Spa Heat Pump

Example Layout - Pool or Spa Heat Pump

Specifications

01
1.5" water connections
02
Max Amps 25.9
03
220-240 VAC
04

Output 28 Kw (95,500 BTU)

05
Weight 288 LBS (131 Kg)
06
Flow rate 27.10 GPM (pool pump sold separately)
07
51" high x 21" wide x 52" tall
08
1 year parts warranty - 2 year compressor warranty (Extended Warranty Available)

Air to Water Swimming Pool & Spa Heat Pump

 Model  ARCTIC 015ZA/B 25ZA/B 040ZA/B 060ZA/B
 Power Supply V/PH/Hz 220/1/50 (60) 220/1/50 (60) 220/1/50 (60) 220/1/50 (60)
Heating Capacity
Ranger
kW 1.3~5.2 2.75~11 4.38~17.5 6.45~25.8
BTU/h 4436~17742 9383~37532 14928~59710 22007~88030
COP Ranger W/W 3.6~13 3.6~13 3.6~13 3.6~13
Heating Capacity (1) kW 5.2 11.0 17.5 25.8
BTU/h 17742 37532 59710 88030
COP (1)  A:30/W:28 W/W 6.2 6.2 6.2 6.2
Input Power (1) kW 0.84 1.77 2.82 4.16
Input Current (1) A 3.8 8.1 12.8 18.9
Heating Capacity (2) kW 5.2 11.0 17.5 25.8
BTU/h 17742 37532 59710 88030
COP (2)  A:24/W:28 W/W 5.60 5.60 5.60 5.60
Input Power (2) kW 0.93 1.96 3.13 4.61
Input Current (2) A 4.2 8.9 14.2 20.9
Heating Capacity (3) kW 5.2 11.0 17.5 25.8
BTU/h 17742 37532 59710 88030
COP (3)  A:15/W:28 W/W 4.8 4.8 4.8 4.8
Input Power (3)  kW 1.08 2.29 3.65 5.38
Input Current (3) A 4.9 10.4 16.6 24.4
Heating Capacity (4) kW 4.8 10.0 16.7 23.5
BTU/h 16378 34120 56980 80182
COP (4)  A:7/W:28 W/W 4.2 4.2 4.2 4.2
Input Power (4) kW 1.14 2.38 3.98 5.60
Input Current (4) A 5.2 10.8 18.1 25.4
Heating Capacity (5) kW 4.3 9.2 14.4 21.0
BTU/h 14672 31390 49133 71652
COP (5)  A:0/W:28 W/W 3.72 3.72 3.72 3.72
Input Power (5) kW 1.16 2.47 3.87 5.65
Input Current (5) A 5.3 11.2 17.6 25.7
Heating Capacity (6) kW 3.6 7.5 12.0 18.0
BTU/h 12283 25590 40944 61416
COP (6)  A:-7/W:28 W/W 3.16 3.16 3.16 3.16
Input Power (6) kW 1.14 2.37 3.80 5.70
Input Current (6) A 5.2 10.8 17.3 25.9
 Compressor   Rotary TWIN Rotary TWIN Rotary TWIN Rotary
 Compressor Qty   1 1 1 1
 Fan Qty   1 1 1 1
 Noise dB(A) 48 52 54 54
 Water Outlet/Water Inlet inch 1–1/2" 1–1/2" 1–1/2" 1–1/2"
 Water Flow Volume GPM 6.78 11.30 17.20 27.10
 Water Pressure Drop PSI 1.7 2.2 2.2 2.3
 Fan Direction   horizontal horizontal horizontal horizontal
 Refrigerant Type   R410A R410A R410A R410A
 Unit Net Dimensions (L/M/H) mm 930/360/550 1115/470/700 1115/470/945 1195/470/1285
 Unit Shipping Dimensions (L/M/H) mm 1035/395/585 1205/525/725 1205/525/975 1285/525/1315
 Net Weight kg 55 90 108 121
 Shipping Weight kg 58 96 116 131

NOTE:

01
Heating - Outdoor air temp: 30°C/24°C, Outlet water temp: 28°C, Input water temp: 26°C
02
Heating - Outdoor air temp: 24°C/19°C, Outlet water temp: 28°C, Input water temp: 26°C
03
Heating - Outdoor air temp: 15°C/12°C, Outlet water temp: 28°C, Input water temp: 26°C
04
Heating - Outdoor air temp: 7°C/6°C, Outlet water temp: 28°C, Input water temp: 26°C
05
Heating - Outdoor air temp: 0°C/-°C, Outlet water temp: 28°C, Input water temp: 26°C
06
Heating - Outdoor air temp: -7°C/-°C, Outlet water temp: 28°C, Input water temp: 26°C
