PAW Actuator SR10 - 24V Required by PAW K32 Pump Station For Weather compensated controls such as the RESol MX. Change over from manual mix to electronic operation. Automatically maintains the proper water temperature for both heating and cooling heating curves. 24 VAC control. TECHNICAL DATA Electrical Connection – 24 VAC/DC Input Power - 3.5 W Actuation time 90 – 140 seconds
SKU N-406
4 In Stock
USD$ 205

Commercial Solar Pump Station PAW FlowCon FA MAX PAW FlowCon FA MAX - Integrated pump station with Wilo Star S30 3-speed solar pump. For Large Commercial Systems requiring higher flow rates Model: N-69 Shipping Weight: 10lbs Manufactured by: PAW Download Product Specification PDF Complete solar control system including solar working station with drain fill valves and shut off isolation valves. Patented air scope, flow meter, pressure release valve, pressure gauge, temperature gauge. Wilo Star S31 3-speed high volume pump included. Quality brass components are high temperature rated. Note: Requires RESOL controller - comes with 1" compression connections. USE in closed loop design only. The circulation unit is used on the primary circuit of solar heating systems to control the temperature in the hot water storage. The pump inside the unit is activated by the signal from the differential temperature regulator. In addition, this unit contains the functional and safety devices for optimum circuit control. FEATURES All medium-bearing parts are made of brass All connections 3/4 " female With Pre-assembled steel wall bracket, with the PAW-mounting set to be installed directly to the tank Full port ball valve in return pipe is noise-free, low pressure drop, manual opener for faster line drain service, spring-actuated - special design for solar thermal applications Large ball valve handles for easy grip, and visible closing position Air-Scoop in the supply line for a permanent degassing of the heat transfer medium Function-optimized design insulationmade of durable elastic EPP; 100% insulation of the fittings - excellent pump ventilation and cooling Solar safety assembly Pressure relief valve 86 PSI high-temperature manometer 0 - 90 PSI with Drain valve for flushing and filling, flat sealing connection for expansion tank Full metal solar thermometer, 32-320°F (0 - 160°C) can be pulled-off, with immersion sleeve being integrated in the ball valve Fully assembled with flat sealing union connections at most joints Pump can be isolated for servicing Flow meter Flow quantity measuring device with balancing valve, 5-40 l/m (1-10 USG/m) Flushing and draining unit integrated Two drain valves (at the Flow meter and at the safety group) enable the filling and flushing of the system Wilo Star 3 speed pump  S30  with 31 feet of head capacity
SKU N-69
Out of stock
USD$ 1,428

Plug and Play Hydronic heating and cooling solutions with PAW Modular Zone Pump Stations. With German Engineered PAW modular pump stations you can design heating system quickly while delivering the highest performance and quality standards in the industry. The PAW Zone pump module quickly connects to a centralized distribution manifold allowing you to share the heat source to multiple zones. Now you can easily design a complete home hydronic system that can do radiant floor heating, domestic hot water, radiators and fan coils, as well as pools and hot tubs. All with one single boiler connection. The K31 with 1” NPT connections is used for high heating zones that do not require mixing. This can be most zones such as domestic hot water, fan coil radiations and pools or hot tubs. For Hyronic radiant floor heat you should use the K32 Model with electronic mixing valve. Features: 1” NPT female connections Large ball valves handles Fully insulated enclosure using EPP Check Valve built into the return piping Reversible supply and return on right or left side (field changeable) All brass construction Metal temperature gauges Pump isolation for quick system repair Includes Grundfos ALPHA 25-55 U Technical Specifications TECHNICAL DATA Zone Module K31 Dimension   1"- DN 25 Materials Fittings Bras   Gaskets EPDM/NBR   Insulation EPP Technical Data Max. Pressure 116 psi/8 bar   Max. Temprature 230 'F/110 'C   CV value 6.3 Dimensions Zone module inlet 11/2"male   Zone module outlet 1" NPT F   Center distance 125 mm/421/32"   Length 368 mm/14.5"   Width insulation 250 mm/927/32"   Height insulation 383 mm/15" Recommended application High/floating temprature zone control up to 85.5 kBTU/h/25.0 kW at △T = 18 'F/10 K   +
SKU N-404
Out of stock
USD$ 1,349

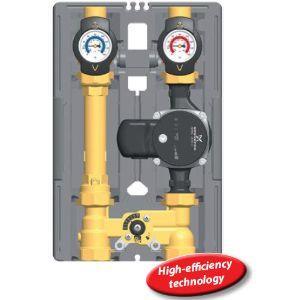

Plug and Play Hydronic heating and cooling solutions with PAW Modular Zone Pump Stations. With German Engineered PAW modular pump stations you can design heating system quickly while delivering the highest performance and quality standards in the industry. The PAW Zone pump module quickly connect to a centralized distribution manifold allowing you to share the heat source to multiple zones. Now you can easily design a complete home hydronic system that can do radiant floor heating, domestic hot water, radiators and fan coils, as well as pools and hot tubs. All with one single boiler connection. The K32 with 1” NPT connections is used for low temperature heating zones that require lower output temperatures such as hydronic floor heating. The built in electronic mixing valve is used for Heating Curves that optimize the system’s performance. Using precise temperature control, the electronic mixing valve receives signals to open and close depending on the heating curve, supply temperatures and outdoor temperatures. In this way your hydronic heating zones always stay constant with no fluctuations. The mixing valve diverters’ colder radiant return water with hotter supply water to give your system the exact temperature required. Requires Electronic Mixing Valve Features: 1” NPT female connections Electronic Mixing Valve can also be adjusted manually Large ball valves handles Fully insulated enclosure using EPP Check Valve built into the return piping Reversible supply and return on right or left side (field changeable) All brass construction Metal temperature gauges Pump isolation for quick system repair Includes Grundfos ALPHA 25-55 UU Technical Specifications TECHNICAL DATA Zone Module K32 Dimension   1"- DN 25 Materials Fittings Bras   Gaskets EPDM/NBR   Insulation EPP Technical Data Max. Pressure 116 psi/8 bar   Max. Temprature 230 'F/110 'C   CV value 4.4 Dimensions Zone module inlet 11/2" male   Zone module outlet 1" NPT F   Center distance 125 mm/421/32"   Length 368 mm/14.5"   Width insulation 250 mm/927/32"   Height insulation 383 mm/15" Recommended application High/floating temprature zone control up to 56.5 kBTU/h/16.5 kW at △T = 18 'F/10 K   +
SKU N-405
2 In Stock
USD$ 1,391

The Grundfos UPS26-99FC is a medium duty circulation pump with a Max flow of 33 GPM and a Head of 29 feet. Ideal for all our line of heat pumps. This is also a great pump for larger hydronic heat loops that require more power. 1/6 HP cast iron pump comes with a built in check valve. Built in automatic thermal protection ensure the pump safety. Download Technical Specifications Applications: Closed loop radiant heating & snow melting systems. Baseboard/Radiator/Fan coil heating and other hydronic heating applications. And others. Features: Built-in motor protection for longer life and better performance. Suitable for a wide range of applications, including radiant heating, hydronic heating, fan coil heating, solar and other system types. Whisper-quiet operation for sound sensitive installations. Includes (2) Gaskets (O-rings). UL/CSA listed. Technical Specifications: Voltage: 230 VAC Amperage at Speed 1: 1.3 Amps; Amperage at Speed 2: 1.5 Amps; Amperage at Speed 3: 1.8 Amps; Hertz: 60 Hz; Phase: 1; Watts at Speed 1: 150W; Watts at Speed 2: 179W; Watts at Speed 3: 197W; Max Pressure: 145 psi; Max Temperature: 230F; Min Temperature: 36F; Flow Range: 0-33 GPM; Head Range: 0-29 ft; Horse Power: 1/6HP; Body: Cast Iron; Connections: Flanged, 1/2", 3/4", 1", 1-1/4"; Warranty: 2 years from the date of installation
SKU N-352
3 In Stock
USD$ 408

1” FPT cast iron flange kit for use with UPS and ALPHA pumps. +
SKU N-432
8 In Stock
USD$ 19

Grundfos ALPHA2 26-99FC Variable Speed Circulator Pump with AUTOADAPT PN-99490916 PN-99490916, 1x115V 60Hz, Check Valve Included The Grundfos ALPHA2 26-99 is a medium sized, energy efficient circulator fitted with a permanent magnet motor (ECM) and frequency converter. Featuring eight different operating modes including constant pressure AUTOADAPT and proportional pressure AUTOADAPT, the ALPHA2 26-99 is the perfect fit for any heating application. AUTOADAPT functionality enables the ALPHA2 26-99 to control operation automatically within a defined performance range. When set in proportional pressure AUTOADAPT or constant pressure AUTOADAPT, the pump will automatically analyze the heating system, find the optimum system curve and duty point and continue to adjust its operation to changes in demand. A magnetite resistant design, robust ceramic shaft and stainless-steel bearing plate ensure that the ALPHA2 26-99 reliably delivers the optimal system flow at the lowest possible energy consumption. ALPHA2 26-99 circulator pumps are designed for circulating liquids in heating and airconditioning systems. These circulators are equipped with a conduit box for easy installation of the power cable. ALPHA2 26-99 models are internally controlled and are designed for systems with variable flow rates, where the pump is internally controlled via a user interface. Speed control can reduce power consumption considerably. Grundfos ALPHA2 26-99FC Features: 8 intelligent control modes: Three defined proportional pressure curve settings Three defined constant pressure curve settings Constant pressure AUTOADAPT Proportional pressure AUTOADAPT Magnetite resistant design protects the pump from harmful iron oxide found in heating systems High efficiency pump design and controls reduce energy consumption by up to 85% 360 [mNm] starting torque clears pump of system debris and sediment Designed with trusted ECM technology which has been used by Grundfos for more than 16 years System and pump protection warning and alarm indicators LED light indicators for pump settings and alarms Easy to use push button control settings Designed using 65+ years of hydronic heating experience Applications: Closed loop radiant heating & snow melting systems, solar thermal secondary loops Baseboard/Radiator/Fan coil heating and other hydronic heating applications. Air Source Heat pumps (hydronic) Geothermal de-super heaters Multiple Zones Technical Specifications of Grundfos ALPHA2 26-99FC : Flow Range: 0 - 26 gpm (0 - 5.9 m 3/h) Head Range: 0 - 42 ft (0 - 12.8 m) Supply voltage: 1 x 115 V, + 10 %/- 10 %, 60 Hz Power usage (approximate): 3 - 120 W Amps: Max. 1.7 A Horsepower: 0.16 hp Min. Fluid Temperature: 14 °F (-10 °C) Max. Fluid Temperature (continuously): 203 °F (95 °C) Max. Outlet Pressure: 150 psi (10 bar) Flange-to-flange length: 6.5 in (165 mm) Pump housing: Cast iron Approvals: cULus Listed Warranty: 3 years manufacturer's warranty. Pump Curve + Dimensions +
SKU N-372
10 In Stock
USD$ 496

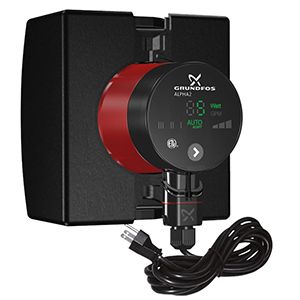

GRUNFOS ALPHA2 15F/LC VARIABLE SPEED CIRCULATION PUMP WITH AUTOADAPT Includes Insulation kit, 120 VAC NEMA Power Chord and Check Valve Circulating Pump-Grundfos ALPHA2 15-55 is the standard by which all other variable speed circulating pumps are measured. The ALPHA2 15-55 has a cast iron body with a permanent magnetic motor that allows it reduce energy consumption by over 50% compared to standard circulation pumps. The LC model includes a standard 115 VAC Nema power chord. This product comes with a custom insulated jacket ideal for both heating and cooling. Check valve is also included. AUTOADAPT measures the system changes and automatically adapts to maximize the energy or to maintain a certain flow rate. Great for multiple zones that open and close at different times as the AUTOADAPT will sense the pressure drop increases the pump speed to compensate for added zones. Grundfos ALPHA2 15-55F/LC Features: Large display shows current energy consumption in Watts Large display shows estimated flow in gallons per minute Integrated check-valve (removable) Line chord 110 -120 VAC Cast Iron pump housing Insulated pump jacket A one button, easy-to-use interface 3 Fixed Speeds 3 Constant Pressure Speeds AutoAdapt Range Applications: Closed loop radiant heating & snow melting systems, solar thermal secondary loops Baseboard/Radiator/Fan coil heating and other hydronic heating applications Air Source Heat pumps (hydronic) Geothermal de-super heaters Multiple Zones Technical Specifications of Grundfos ALPHA2 15-55F/LC : Flow Range: 0 to 21 GPM Head Range: 0 to 19 Feet Motor: 1x115V Min. Fluid Temperature: 36F Max. Fluid Temperature: 230F Max. Working Pressure: 150 PSI Watts: 5-45W Amps: 0.65A 1/16 HP Warranty: 3 years manufacturer's warranty. Pump Curve +
SKU N-350
12 In Stock
USD$ 199

Solar Feed Pump Station - ST-Pump-Feeder-MF 200 - S MODEL MF200-S ‘SOLAR PAL’ MINI SYSTEM FEEDER The ‘SOLAR PAL’ is designed for application with Solar systems collectors typicaly mounted high on the structure that may require higher static fill pressures than conventional residential and light commercial projects. The system feeder can provide fill pressure as high as 35 psig. It is compatible with water and most commonly used anti-freeze solutions. NOTE – the system pressure relief valve must be rated to handle the higher pressure. Do not use the MF200-S in any application with a 30psig relief valve. Features: 22.7 liter (6.0 US gallon) tank for storage and mixing Power supply plugs into any standard 115 VAC outlet Diaphragm pump can run dry without damage No direct connection to potable water supply eliminates need for backflow prevention Make-up fluid stored in the feeder tank can be pre-treated Diverter valve allows easy purging of air on initial start-up, and manual agitation of solution Prevents major floods - in the event of system rupture, only the contents of the tank will be pumped into the system Provides leak detection - dropping fluid level provides immediate notice that the system has developed a leak Fluid drained for service can easily be put back into the system Fluid level switch shuts the pump off if the storage tank level gets too low Auxiliary dry contact included for remote low pressure alarm (alarm optional or by others) ELECTRICAL: Fused Power supply adapter 115/60/1 to 24 VDC Rated 50 watts AC LED Power Light PUMP PERFORMANCE: 0.04 l/s (0.7 gpm) @ free flow Self-priming up to 1.2 m (4 feet) +
SKU N-293
Out of stock
USD$ 330
