Advanced Heat Pump Controller - HBX ECO-0550

USD$ 355
SKU: N-412
Out of stock

Advanced Heat Pump Controller - HBX ECO-0550

Introducing the simplest, most intuitive control available to the geothermal industry: the ECO-0550, now with the Thermolinx™ Hydronic Network, allowing you to control your geothermal system from the palm of your hand. The ECO-0550 covers a multitude of geothermal applications, and can accommodate for heat pumps with a backup boiler, reversing valve and a system pump for complete system coverage with the ability to control single or dual tank systems.

Heat Pump & Backup Control

The ECO-0550 stand-alone control is designed to control equipment in a 2 pipe, single or dual tank, hydronic heating or cooling system. The ECO-0550 can control up to three (3) heat pump stages (air-to-water or water-water) or chillers and a reversing valve with outdoor temperature reset control.

This powerful control can also control a backup heat source (boiler) while operating two (2) heat pump stages. The backup heat source can be brought on with a few different options based on outdoor or tank temperatures. The control can manage single tank applications as well as applications with separate hot and cold tanks.

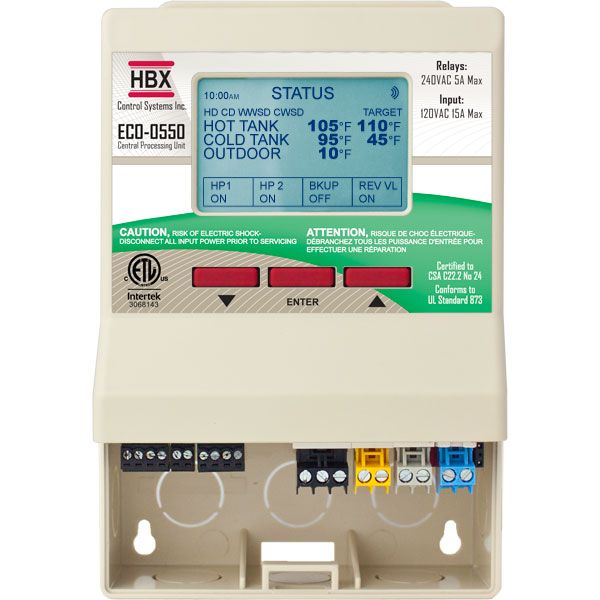

HBX ECO-0550

EcoSwitch Energy Clock

The EcoSwitch feature allows you to lockout your heat pumps and run only the backup boiler on a timed schedule, allowing you to save on energy and lower your utility bills during peak time periods. The schedule can be set for 4 different times per day for weekends and weekdays.

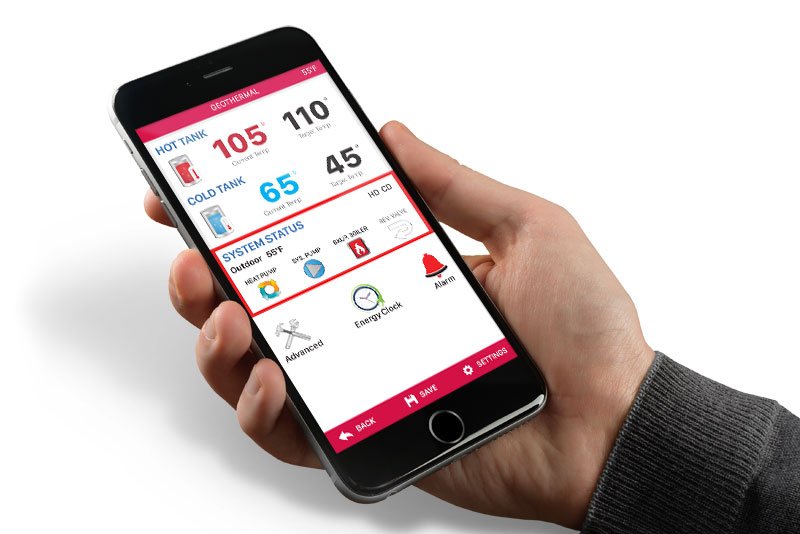

HBX Thermolinx™ mobile app

Remote Access Anytime, Anywhere

Used in conjunction with the free HBX Thermolinx™ mobile app, users can control their geothermal system remotely from there smartphone or tablet devices with the ability to adjust heat pump and backup parameters, monitor tank temperatures, equipment operation status and receive alarm notifications.

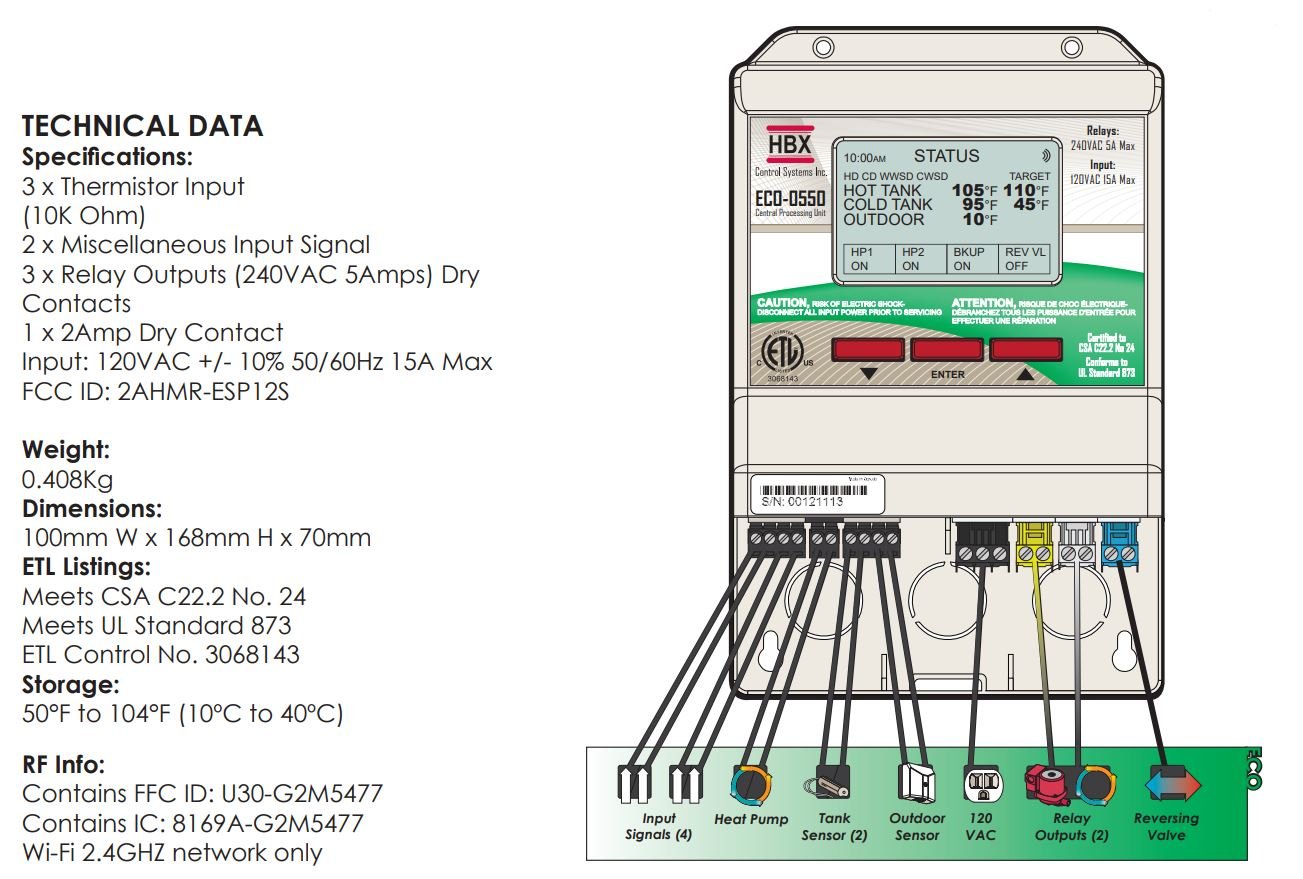

ECO-0550 Technical Data

Features & Benefits

01
Remote access via Apple® or Android™ smartphone or tablet devices
02
Stage up to 3 heat pumps
03
Backup boiler control with 2 heat pump operation
04
Outdoor temperature reset
05
Single or dual tank modes
06
Runs reversing valve and/or 3 way valves
07
Rotates heat pumps based on time or cycles
08
Automatic heat / cool changeover
09
Priority setup for heating or cooling
10
Warm & cold weather shutdown with lagtime setup for shoulder seasons
11
EcoSwitch – Lockout heat pumps and run backup boiler only
12
Pump Exercising
13
Limited 2 year warranty
14
Made In Canada

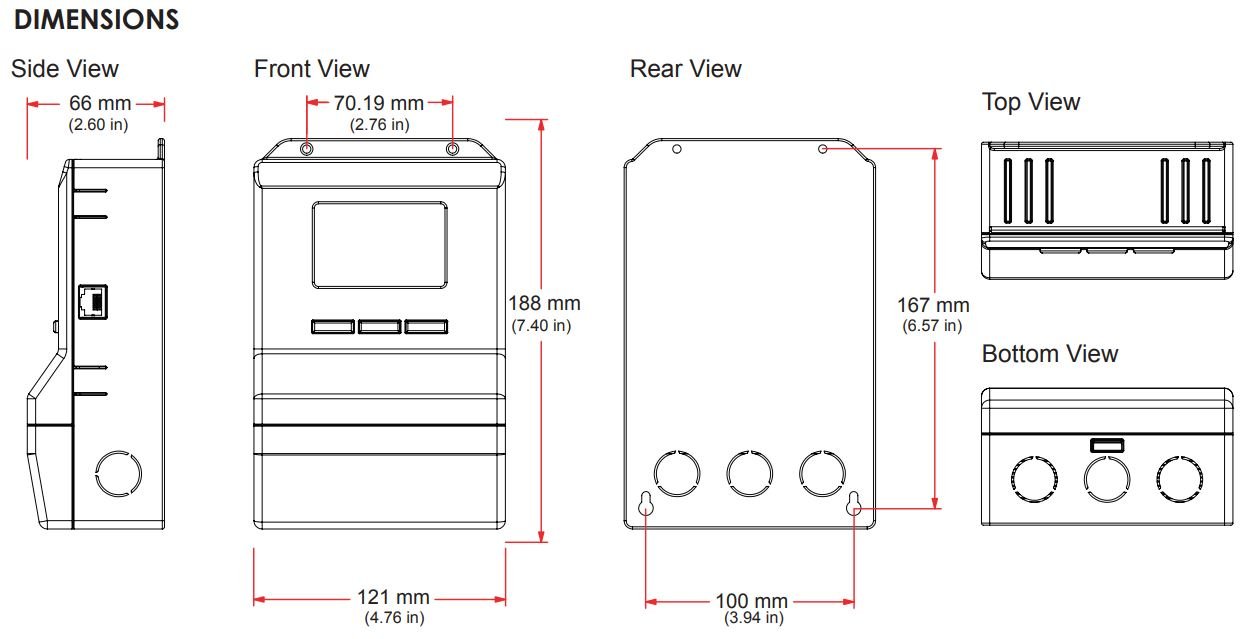

ECO-0550 Dimensions

Visit hbxcontrols.com to view the manual and other documentation.
