Hydronic Pumps Cost

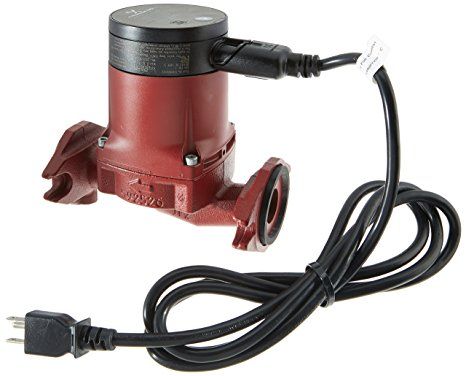

The Grundfos UPS26-99FC is a medium duty circulation pump with a Max flow of 33 GPM and a Head of 29 feet. Ideal for all our line of heat pumps. This is also a great pump for larger hydronic heat loops that require more power. 1/6 HP cast iron pump comes with a built in check valve. Built in automatic thermal protection ensure the pump safety. Download Technical Specifications Applications: Closed loop radiant heating & snow melting systems. Baseboard/Radiator/Fan coil heating and other hydronic heating applications. And others. Features: Built-in motor protection for longer life and better performance. Suitable for a wide range of applications, including radiant heating, hydronic heating, fan coil heating, solar and other system types. Whisper-quiet operation for sound sensitive installations. Includes (2) Gaskets (O-rings). UL/CSA listed. Technical Specifications: Voltage: 230 VAC Amperage at Speed 1: 1.3 Amps; Amperage at Speed 2: 1.5 Amps; Amperage at Speed 3: 1.8 Amps; Hertz: 60 Hz; Phase: 1; Watts at Speed 1: 150W; Watts at Speed 2: 179W; Watts at Speed 3: 197W; Max Pressure: 145 psi; Max Temperature: 230F; Min Temperature: 36F; Flow Range: 0-33 GPM; Head Range: 0-29 ft; Horse Power: 1/6HP; Body: Cast Iron; Connections: Flanged, 1/2", 3/4", 1", 1-1/4"; Warranty: 2 years from the date of installation

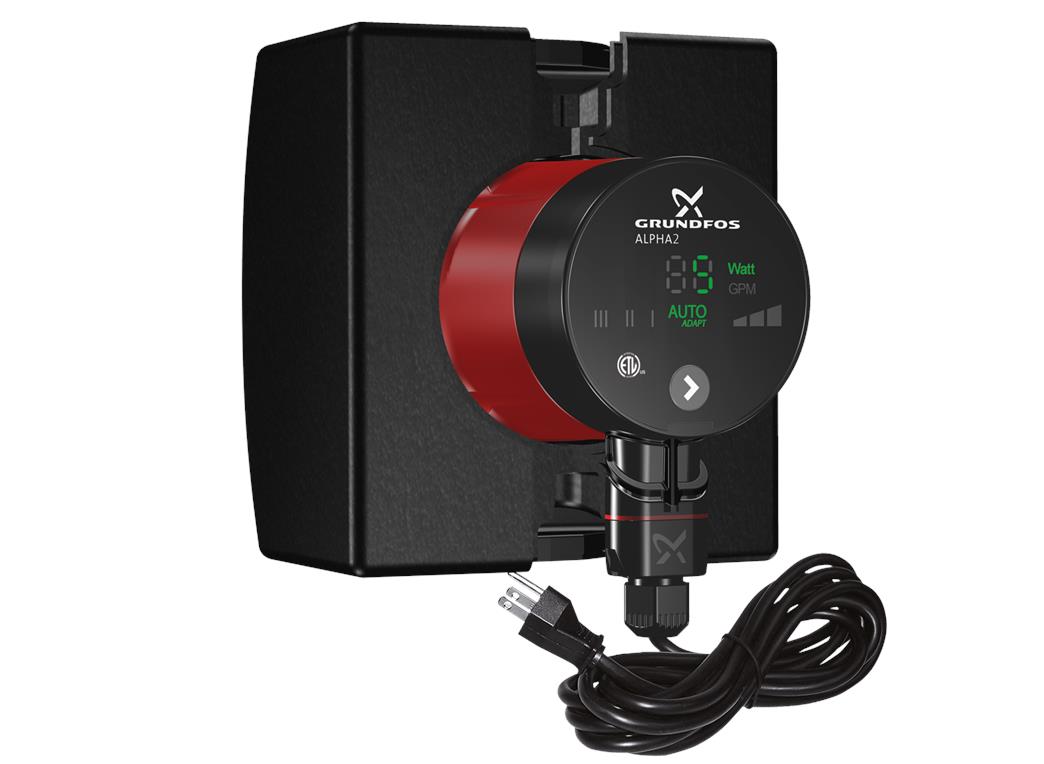

Grundfos ALPHA2 26-99FC Variable Speed Circulator Pump with AUTOADAPT PN-99490916 PN-99490916, 1x115V 60Hz, Check Valve Included The Grundfos ALPHA2 26-99 is a medium sized, energy efficient circulator fitted with a permanent magnet motor (ECM) and frequency converter. Featuring eight different operating modes including constant pressure AUTOADAPT and proportional pressure AUTOADAPT, the ALPHA2 26-99 is the perfect fit for any heating application. AUTOADAPT functionality enables the ALPHA2 26-99 to control operation automatically within a defined performance range. When set in proportional pressure AUTOADAPT or constant pressure AUTOADAPT, the pump will automatically analyze the heating system, find the optimum system curve and duty point and continue to adjust its operation to changes in demand. A magnetite resistant design, robust ceramic shaft and stainless-steel bearing plate ensure that the ALPHA2 26-99 reliably delivers the optimal system flow at the lowest possible energy consumption. ALPHA2 26-99 circulator pumps are designed for circulating liquids in heating and airconditioning systems. These circulators are equipped with a conduit box for easy installation of the power cable. ALPHA2 26-99 models are internally controlled and are designed for systems with variable flow rates, where the pump is internally controlled via a user interface. Speed control can reduce power consumption considerably. Grundfos ALPHA2 26-99FC Features: 8 intelligent control modes: Three defined proportional pressure curve settings Three defined constant pressure curve settings Constant pressure AUTOADAPT Proportional pressure AUTOADAPT Magnetite resistant design protects the pump from harmful iron oxide found in heating systems High efficiency pump design and controls reduce energy consumption by up to 85% 360 [mNm] starting torque clears pump of system debris and sediment Designed with trusted ECM technology which has been used by Grundfos for more than 16 years System and pump protection warning and alarm indicators LED light indicators for pump settings and alarms Easy to use push button control settings Designed using 65+ years of hydronic heating experience Applications: Closed loop radiant heating & snow melting systems, solar thermal secondary loops Baseboard/Radiator/Fan coil heating and other hydronic heating applications. Air Source Heat pumps (hydronic) Geothermal de-super heaters Multiple Zones Technical Specifications of Grundfos ALPHA2 26-99FC : Flow Range: 0 - 26 gpm (0 - 5.9 m 3/h) Head Range: 0 - 42 ft (0 - 12.8 m) Supply voltage: 1 x 115 V, + 10 %/- 10 %, 60 Hz Power usage (approximate): 3 - 120 W Amps: Max. 1.7 A Horsepower: 0.16 hp Min. Fluid Temperature: 14 °F (-10 °C) Max. Fluid Temperature (continuously): 203 °F (95 °C) Max. Outlet Pressure: 150 psi (10 bar) Flange-to-flange length: 6.5 in (165 mm) Pump housing: Cast iron Approvals: cULus Listed Warranty: 3 years manufacturer's warranty. Pump Curve + Dimensions +

Grundfos Isolation Valve Kit - 1" NPT - PAIR PN 96806131 Features: Full port shut-off ball valve Dielectric isolation = no galvanic (dissimilar metal) corrosion Service pump without draining system Swivel flange allows optimum pump mounting position

Grundfos Flange Kit - 1" FTP +

GRUNDFOS MAGNA1 32-100F VARIABLE SPEED CIRCULATOR PUMP - 98126823 Includes Insulation kit, Assembled in USA The Grundfos MAGNA1 is a circulator pump with permanent magnet motor and easy selection of pump setting. The MAGNA1 will fit both heating, cooling and domestic hot water circulation applications perfectly, making it the obvious choice for almost any building project – old or new. + The pump is a canned-rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. A pump with no maintenance requirements and extremely low life cycle cost. The pump has an intuitive user interface, which is especially fit for replacement of older circulators. The ideal choice for basic performance needs in applications where system communication is not required. Grundfos MAGNA1 32-100F + Dimensions + Suitable For Commercial air conditioning Commercial heating Commercial hot water recirculation District cooling District heating Domestic hot water recirculation Domestic heating Cooling Industrial heating Specifications Product name: MAGNA1 32-100 F Product No: 98126823 EAN number: 5710629499851 Technical Head max: 100 dm TF class: 110 Approvals on nameplate: 98544607 Model: B Materials Pump housing: Cast ironEN-GJL-250ASTM A48-250B Impeller: PES 30%GF Installation Range of ambient temperature: 0 .. 40 °C Maximum operating pressure: 12 bar Flange standard: GF Pipe connection: GF15/26/40/43 Pressure rating: PN12 Port-to-port length: 165 mm Liquid Pumped liquid: Water Liquid temperature range: -10 .. 110 °C Selected liquid temperature: 60 °C Density: 983.2 kg/m³ Electrical Data Power input - P1: 8.62 .. 178 W Mains frequency: 60 Hz Rated voltage: 1 x 115-230 V Maximum current consumption: 0.28 .. 1.61 A Enclosure class (IEC 34-5): X4D Insulation class (IEC 85): F Others Energy (EEI): 0.19 Net weight: 5.49 kg Gross weight: 6.48 kg Shipping volume: 0.01 m³ WARRANTY - 3 YEARS manufacturer's warranty RETURN POLICY: We want you to be 100% satisfied with your purchase, if you are not, ship it back to us in the original packaging condition and we will refund your purchase less a 10% restocking fee, provided the equipment is received in good condition. Refund offer valid for 30 days from receipt of product. WARRANTY: We feel that being honest is a much better policy to win your trust rather than trying to lure you with nearly impossible statements such as lifetime warranty. Nothing lasts forever! Our warranty policy is simple; we offer a 3 year warranty on everything we sell and 10 years on our collectors. With this warranty you will get NO hassle next business day replacement (if shipping service and inventory permits). However, as a valued customer you will get technical support through the lifetime ownership of your product. Our Collector do carry longer warranties 10 years from the manufacture. The warranty cover failures that occur during normal operational conditions or manufactures defects. It does not cover failure due to inappropriate operation such as freezing or over heat. Damage caused by vandalism, storms, floods etc. Your household insurance should be modified to cover the system from such situations.

Includes Insulation Kit, Assembled in USA The Grundfos MAGNA1 is a circulator pump with permanent magnet motor and easy selection of pump setting. The MAGNA1 will fit both heating, cooling and domestic hot water circulation applications perfectly, making it the obvious choice for almost any building project – old or new. + The pump is a canned-rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. A pump with no maintenance requirements and extremely low life cycle cost. The pump has an intuitive user interface, which is especially fit for replacement of older circulators. The ideal choice for basic performance needs in applications where system communication is not required. Grundfos MAGNA1 32-60F + Dimensions + Suitable For Commercial air conditioning Commercial heating Commercial hot water recirculation District cooling District heating Domestic hot water recirculation Domestic heating Cooling Industrial heating Specifications Product name: MAGNA1 32-60 F Product No: 98126819 EAN number: 5710629499813 Technical Head max: 60 dm TF class: 110 Approvals on nameplate: 98544607 Model: B Materials Pump housing: Cast ironEN-GJL-250ASTM A48-250B Impeller: PES 30%GF Installation Range of ambient temperature: 0 .. 40 °C Maximum operating pressure: 12 bar Flange standard: GF Pipe connection: GF15/26/40/43 Pressure rating: PN12 Port-to-port length: 165 mm Liquid Pumped liquid: Water Liquid temperature range: -10 .. 110 °C Concentration: 10% Selected liquid temperature: 60 °C Density: 983.2 kg/m³ Electrical Data Power input - P1: 8.62 .. 107 W Mains frequency: 60 Hz Rated voltage: 1 x 115-230 V Maximum current consumption: 0.28 .. 1.01 A Enclosure class (IEC 34-5): X4D Insulation class (IEC 85): F Others Energy (EEI): 0.20 Net weight: 5.42 kg Gross weight: 6.48 kg Shipping volume: 0.01 m³ WARRANTY - 3 YEARS manufacturer's warranty WARRANTY: We feel that being honest is a much better policy to win your trust rather than trying to lure you with nearly impossible statements such as lifetime warranty. Nothing lasts forever! Our warranty policy is simple; we offer a 3 year warranty on everything we sell and 10 years on our collectors. With this warranty you will get NO hassle next business day replacement (if shipping service and inventory permits). However, as a valued customer you will get technical support through the lifetime ownership of your product. Our Collector do carry longer warranties 10 years from the manufacture. The warranty cover failures that occur during normal operational conditions or manufactures defects. It does not cover failure due to inappropriate operation such as freezing or over heat. Damage caused by vandalism, storms, floods etc. Your household insurance should be modified to cover the system from such situations. RETURN POLICY: We want you to be 100% satisfied with your purchase, if you are not, ship it back to us in the original packaging condition and we will refund your purchase less a 10% restocking fee, provided the equipment is received in good condition. Refund offer valid for 30 days from receipt of product.

Solar Feed Pump Station - ST-Pump-Feeder-MF 200 - S MODEL MF200-S ‘SOLAR PAL’ MINI SYSTEM FEEDER The ‘SOLAR PAL’ is designed for application with Solar systems collectors typicaly mounted high on the structure that may require higher static fill pressures than conventional residential and light commercial projects. The system feeder can provide fill pressure as high as 35 psig. It is compatible with water and most commonly used anti-freeze solutions. NOTE – the system pressure relief valve must be rated to handle the higher pressure. Do not use the MF200-S in any application with a 30psig relief valve. Features: 22.7 liter (6.0 US gallon) tank for storage and mixing Power supply plugs into any standard 115 VAC outlet Diaphragm pump can run dry without damage No direct connection to potable water supply eliminates need for backflow prevention Make-up fluid stored in the feeder tank can be pre-treated Diverter valve allows easy purging of air on initial start-up, and manual agitation of solution Prevents major floods - in the event of system rupture, only the contents of the tank will be pumped into the system Provides leak detection - dropping fluid level provides immediate notice that the system has developed a leak Fluid drained for service can easily be put back into the system Fluid level switch shuts the pump off if the storage tank level gets too low Auxiliary dry contact included for remote low pressure alarm (alarm optional or by others) ELECTRICAL: Fused Power supply adapter 115/60/1 to 24 VDC Rated 50 watts AC LED Power Light PUMP PERFORMANCE: 0.04 l/s (0.7 gpm) @ free flow Self-priming up to 1.2 m (4 feet) +

PAW Actuator SR10 - 24V Required by PAW K32 Pump Station For Weather compensated controls such as the RESol MX. Change over from manual mix to electronic operation. Automatically maintains the proper water temperature for both heating and cooling heating curves. 24 VAC control. TECHNICAL DATA Electrical Connection – 24 VAC/DC Input Power - 3.5 W Actuation time 90 – 140 seconds

Plug and Play Hydronic heating and cooling solutions with PAW Modular Zone Pump Stations. With German Engineered PAW modular pump stations you can design heating system quickly while delivering the highest performance and quality standards in the industry. The PAW Zone pump module quickly connect to a centralized distribution manifold allowing you to share the heat source to multiple zones. Now you can easily design a complete home hydronic system that can do radiant floor heating, domestic hot water, radiators and fan coils, as well as pools and hot tubs. All with one single boiler connection. The K32 with 1” NPT connections is used for low temperature heating zones that require lower output temperatures such as hydronic floor heating. The built in electronic mixing valve is used for Heating Curves that optimize the system’s performance. Using precise temperature control, the electronic mixing valve receives signals to open and close depending on the heating curve, supply temperatures and outdoor temperatures. In this way your hydronic heating zones always stay constant with no fluctuations. The mixing valve diverters’ colder radiant return water with hotter supply water to give your system the exact temperature required. Features: 1” NPT female connections Electronic Mixing Valve can also be adjusted manually Large ball valves handles Fully insulated enclosure using EPP Check Valve built into the return piping Reversible supply and return on right or left side (field changeable) All brass construction Metal temperature gauges Pump isolation for quick system repair Includes Grundfos ALPHA 25-55 UU Technical Specifications Dimension   1"- DN 25 Materials Fittings Bras   Gaskets EPDM/NBR   Insulation EPP Technical Data Max. Pressure 116 psi/8 bar   Max. Temprature 230 'F/110 'C   CV value 4.4 Dimensions Zone module inlet 11/2" male   Zone module outlet 1" NPT F   Center distance 125 mm/421/32"   Length 368 mm/14.5"   Width insulation 250 mm/927/32"   Height insulation 383 mm/15" Recommended application High/floating temprature zone control up to 56.5 kBTU/h/16.5 kW at △T = 18 'F/10 K   +
