Hydronic Zone Control - HBX ZON-0550

USD$ 219
SKU: N-407
1 In Stock

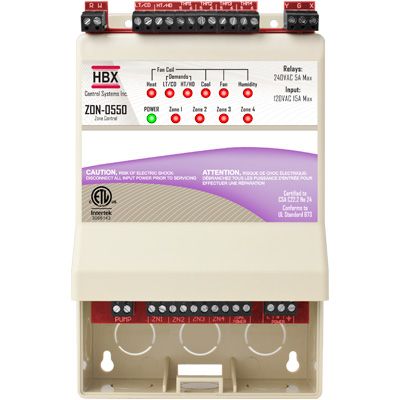

Hydronic Zone Control - HBX ZON-0550

The ZON-0550 is the first Wi-Fi enabled zoning control to the hydronic industry and can be used in many different applications from radiant heating to forced air delivery systems or a combination of both applications.

The ZON-0550 module has the capability to control up to four (4) THM-0300 or THM-0500 thermostats per module and can operate pumps, valves or motorized dampers to provide heating and/or cooling to your HVAC system.

Hydronic Zone Control - HBX ZON-0550

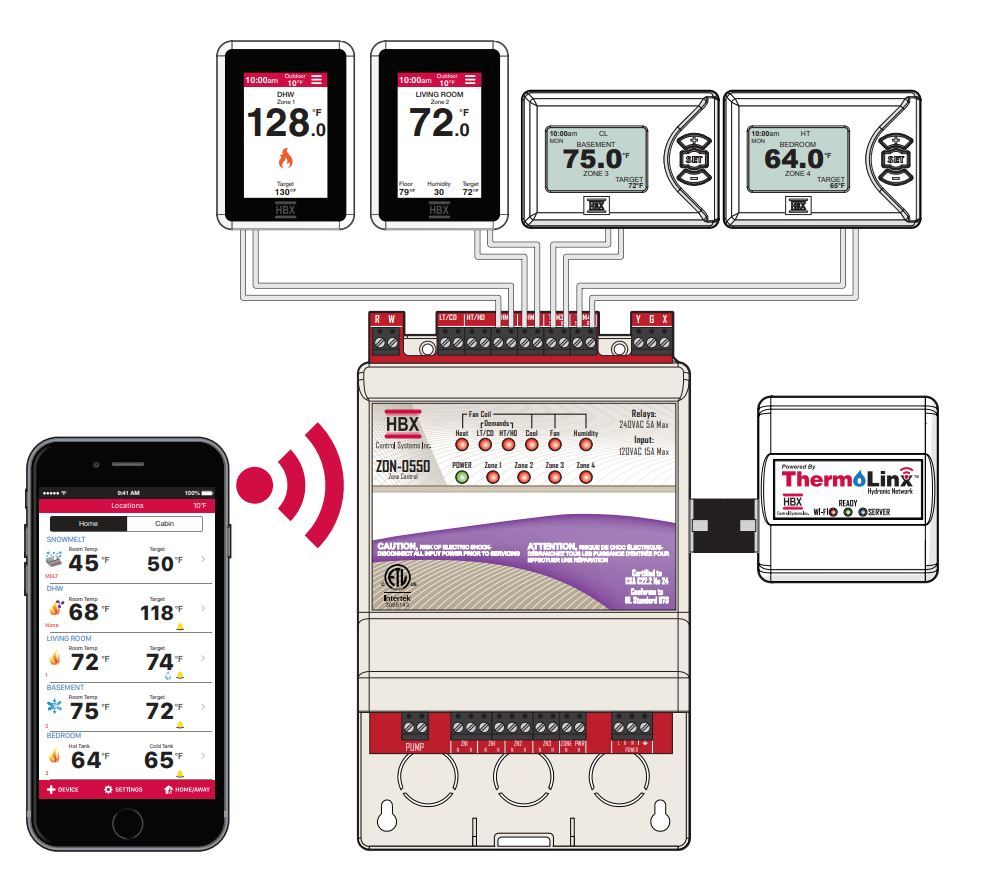

ZON-0550 - Wi-Fi enabled zoning control

The control can be expandable up to a maximum of 20 zones that utilize wireless pairing communication between controllers.

The zone controller provides outputs (R-W-Y-G-X) for air delivery systems to control fancoils, furnaces, and air conditioning units. The zone outputs also allow for humidification and de-humidification control.

NOTE: Humidity control is only available on Version 2.0 for the ZON-0550 and THM-0500 thermostats. THM-0300 thermostat is not able to control humidity.

The ZON-0550 provides two (2) demands outputs for a boiler with the added benefits of a system pump output and DHW control with priority. For geothermal applications, you can use the same demand outputs to control 2 or 4 pipe systems.

The ZON-0550 incorporates exercising when equipment is not in use to prevent seizure as well as post purge.

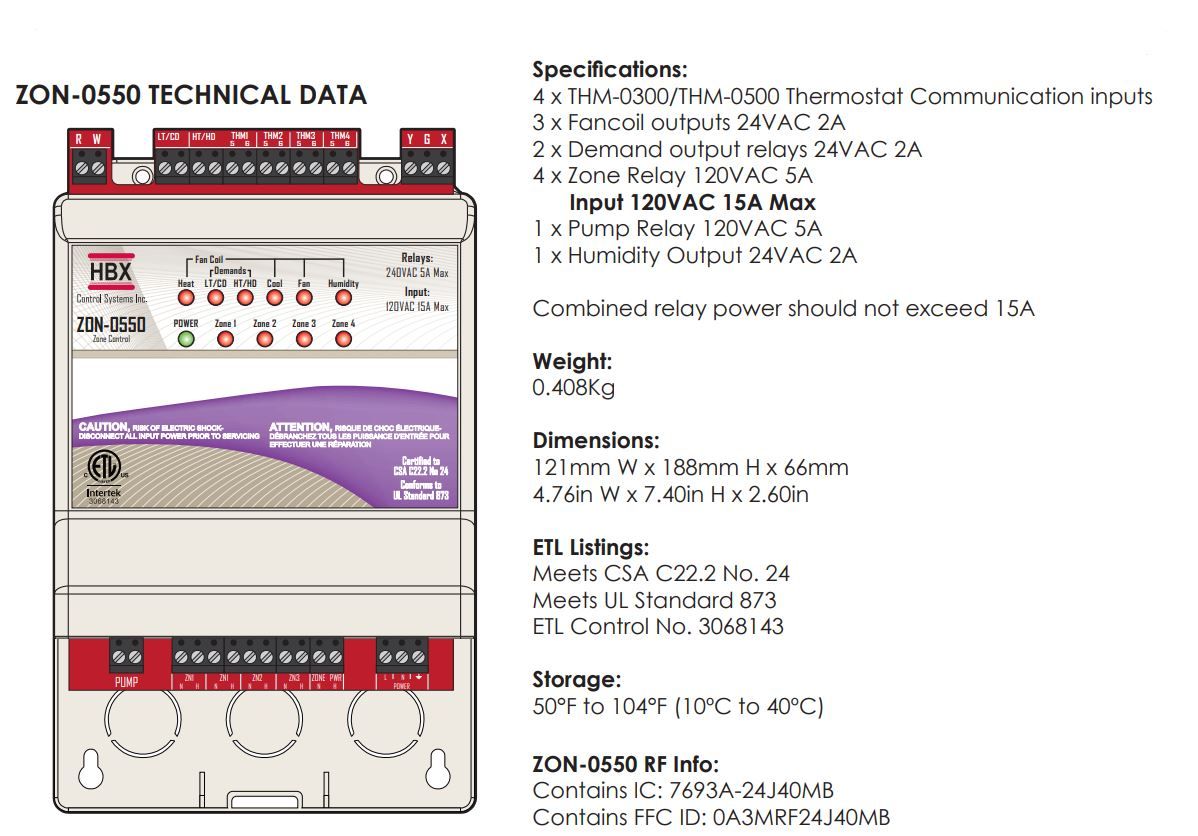

HBX ZON-0550 - Specification

Features & Benefits

01
Remote access via Apple® and Android™ Smartphone or tablet devices
02
Control up to 20 zones per system
03
Humidification and de-humidification control
04
DHW control with priority
05
Zone pump and zone valve control
06
Damper control with N/O and N/C damper options
07
Fancoil, furnace, air conditioning control
08
Demand outputs: High/ Low temp (boiler), Heat or cool demand (geothermal)
09
System pump control
10
Only requires 2 wires per zone to THM-0300/THM-0500 thermostat
11
Geothermal Mode (control 2 or 4 pipe systems)
12
Alarm email notification through ThermoLinx mobile app
13
Pump exercising
14
Post purge
15
Zone priority
16
Made In Canada

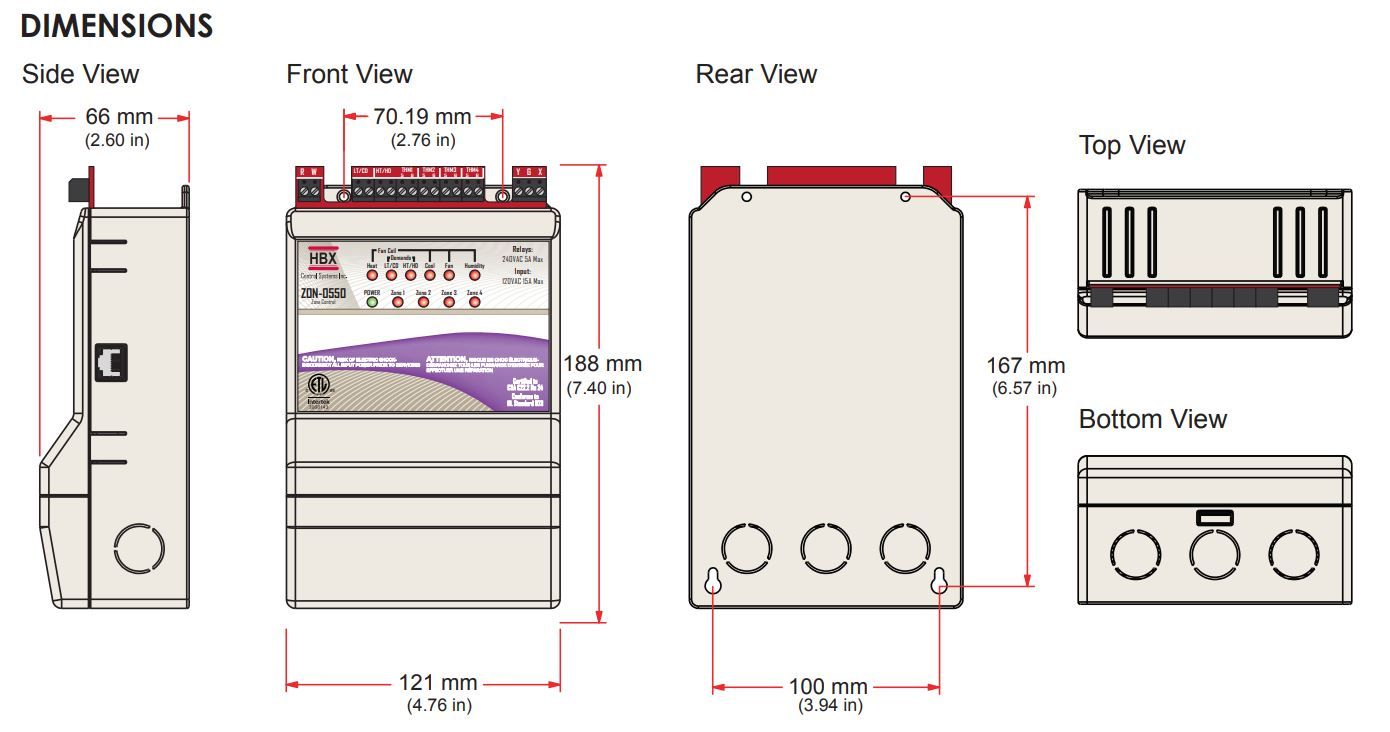

HBX ZON-0550 Dimensions

Visit hbxcontrols.com to view the manual and other documentation.
